Product Introduction

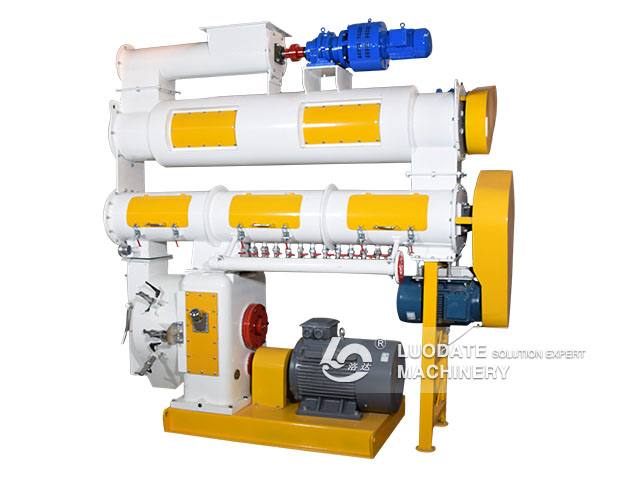

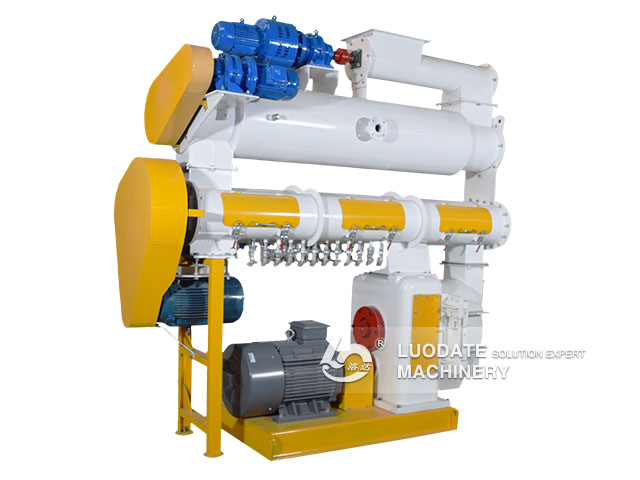

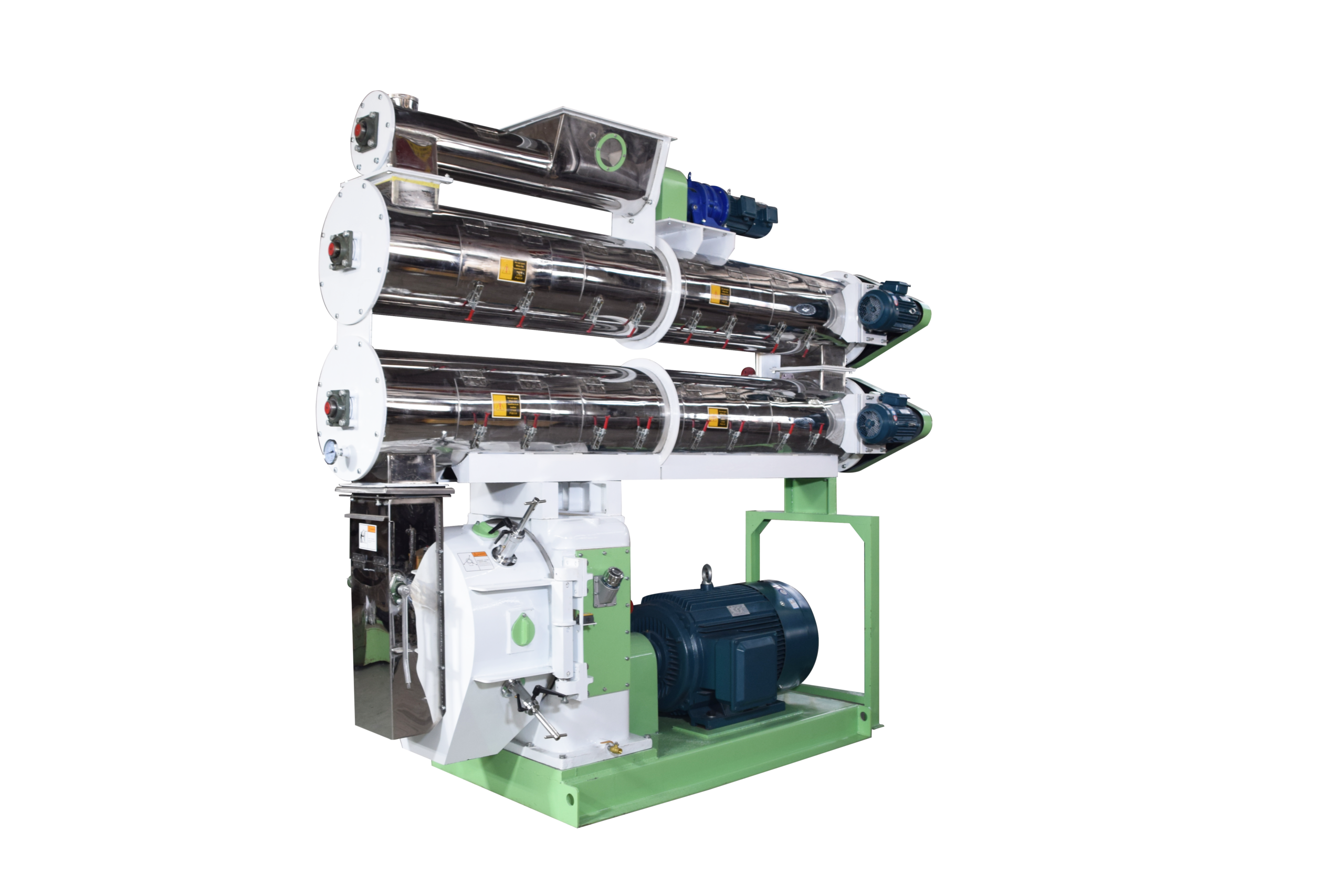

An aquatic feed pellet machine presses mixed feed powder into firm, uniform pellets for fish, shrimp and crab. It is the core machine in an aquatic feed production line, turning prepared mash into finished aqua feed.
Pelletizing is one step in a longer process: material is ground and mixed before pelleting, then cooled and screened after it. The pellet machine sits between these stages, so its capacity and die specification need to match the whole line. Typical users are fish feed producers, shrimp and crab feed plants, and integrated aquaculture farms.
The SZLH series covers 0.5–28 t/h and produces pellets from 1 to 6 mm. Double-layer or three-layer stainless steel conditioners are available, and different model sizes serve medium-sized feed plants and larger commercial projects.
Luodate Machinery supplies the complete aquatic feed line — grinding, mixing, cooling and screening — and configures the pellet machine to each customer’s formula and target output.
Product Advantages
The aquatic feed pellet machine uses a stainless steel conditioning system. Double-layer and three-layer conditioners are available, so conditioning can be matched to each feed formula and species.
The main drive uses a high-accuracy gearbox. It supports efficient, stable operation and keeps pellet forming consistent.
A frequency-controlled feeder controls how much material enters the die. Feeding stays even, and overload protection protects the machine when the load rises.
Ring dies can be changed to produce pellets from 1 to 6 mm. One machine then covers different species, growth stages and feed formulas.
The optimized pelletizing structure spreads material evenly in the die. Pellets come out dense and water-stable, so the feed holds its shape in water instead of dissolving.
The machine connects with grinding, mixing, cooling and screening equipment. Luodate Machinery configures each unit to your feed type and target output.
Technical Parameter
| Model | Power (kw) | Power of feeder (kw) | Power of conditioner(kw) | Inner diameter of ring die (mm) | Pellet size (mm) | Capacity(t/h) |
|---|---|---|---|---|---|---|
| SZLH 320 | 45 | 1.1 | 2.2×2 | 320 | 1-6 | 2-3 |
| SZLH 350 | 55 | 1.5 | 3×2 | 350 | 1-6 | 2-7 |
| SZLH 400 | 75/90 | 1.5 | 5.5×2 | 400 | 1-6 | 4-11 |
| SZLH 420 | 90/110 | 1.5 | 5.5×2 | 420 | 1-6 | 5-12 |
| SZLH 508 | 132/160 | 2.2 | 7.5×2 | 508 | 1-6 | 7-15 |
| SZLH 678 | 185/200 | 2.2 | 11×2 | 678 | 1-6 | 9-25 |
| SZLH 768 | 280/315 | 2.2 | 15×2 | 768 | 1-6 | 15-28 |
Production Process
The aquatic feed pellet machine sits in the middle of the production line. Raw materials are ground and mixed before pelleting. Inside the machine, the mash is conditioned in a stainless steel conditioner, then pressed through the ring die into pellets. After pelleting, pellets are cooled, screened to remove fines, and sent to packaging. Every step feeds the next, so the pellet machine has to match the capacity of the whole line.
It presses mixed feed powder into firm, uniform pellets for farmed fish, shrimp and crab. It is the core machine in an aquatic feed production line.
The SZLH series covers 0.5–28 t/h. Different model sizes serve medium-sized feed plants and larger commercial projects.
It produces pellets from 1 to 6 mm. Ring dies can be changed, so one machine covers different species, growth stages and feed formulas.
It makes feed for fish, shrimp, crab and other aquatic species. Pellet size and conditioning can be adjusted to each species and growth stage.
Match the machine to your raw materials, required pellet size, feed formula and target output. LUODATE configures the equipment to each project.
Grinding, mixing, cooling and screening equipment work with the pellet machine. LUODATE supplies hammer mills, double shaft paddle mixers and counterflow coolers for the line.
