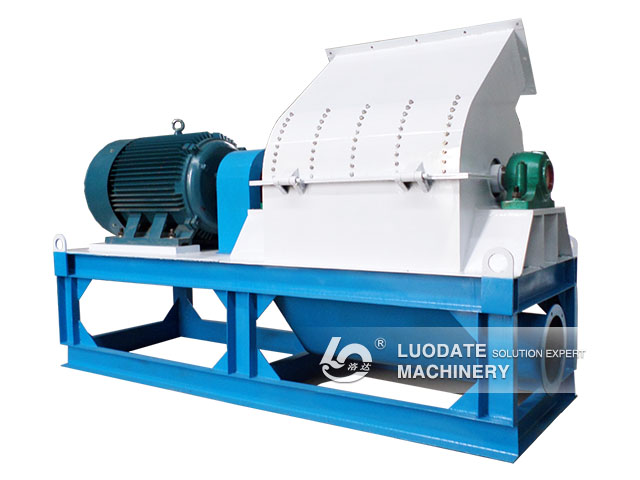

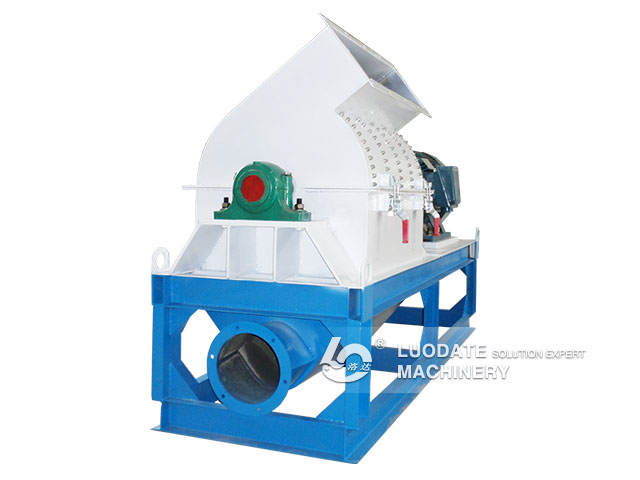

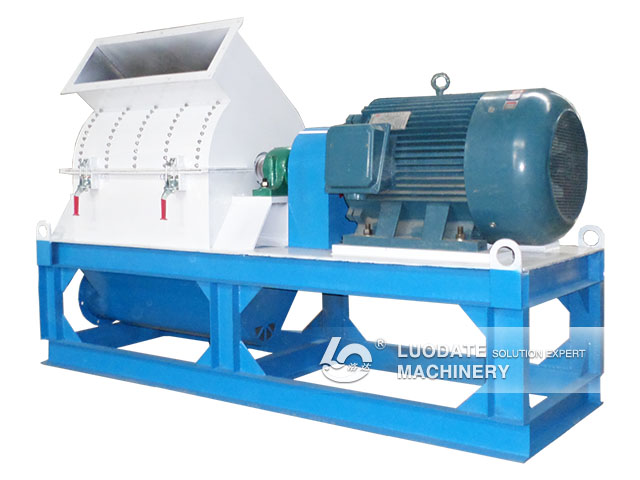

SMFP66 series Straw Hammer Mill

  • Type: SMFP66 series Straw Hammer Mill
  • Capacity(t/h): 1-10
  • Power(kw): 37-220
  • Usage: Corn straw, broomcorn straw, peanut vine, bean stalk, hay, etc.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

  • This series hammer mill can crush kinds of straw and grass materials, like: corn straw, brromcorn straw, peanut vine,bean stalk,hay, etc.
  • Inlet are on the top of the machine.
  • Made of thick steel plate welded together,the grinding chamber and the material contact parts are wearable and replaceable parts and double wear plate.
  • The motor is set on the same base with the rotor, direct drive by the coupling.
  • The rotor is dynamic balancing,and can work in reverse,hammer for symmetrical arrangement.
  • This machine is simple, stable, safety and reliable, easy to installing & operating, little shock and high efficiency.

Technical Parameter:

Model Rotor diameter (mm) Hammer piece Crushing chamber width (mm) Motor power (kw) Size (L * W * H)
SMFP66X40 660 32 400 37-45 1675×1238×1500
SMFP66X60 660 48 600 55-75 1675×1238×1500
SMFP66X80 660 64 800 90-110 2376×820×1520
SMFP66X100 660 80 1000 132-160 2576×950×1520
SMFP66X125 660 96 1250 180-220 2786×1040×1520
