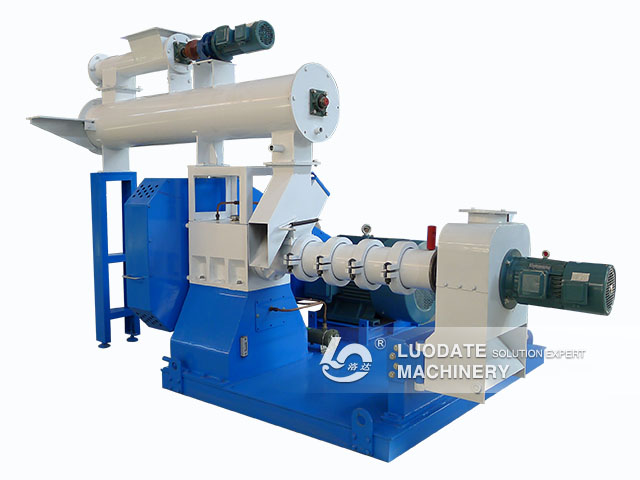

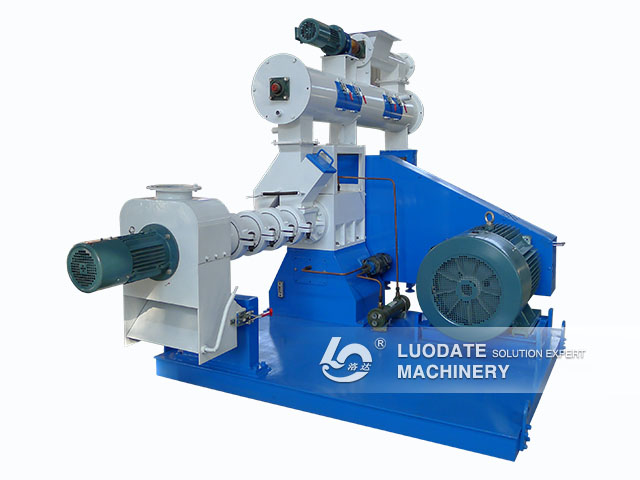

SPH series Raw Material Extruder (wet type)

  • Type: SPH series Raw Material Extruder (wet type)
  • Capacity(kg/h): 75-3500
  • Power(kw): 7.5-160
  • Application: Corn, soybeans, etc., this machine can be used for a variety of Baby animal feed processing.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

1. We configure a variety of extrusion screw and pressure ring, can adjust the configuration according to different materials, to achieve the best state of expansion.
2. Three kinds of discharge modes using single hole, multi hole and ring gap, can produce different shapes of products.
3. The extrusion screw and pressure ring wearing parts are made of wear-resistant alloy steel by special processing technology, the service life is 5 times more than ordinary materials, greatly reduce the cost of equipment operation.
4. The feeding device adopts a variable pitch screw, no knot arch, homogeneity.
5. The feeder is driven by the inverter, easy to adjust the volume of feed.
6. Integral casting of bearing box and high precision boring machine, Coaxial degree and concentric degree are better, more stable operation of the device.
7. Using the imported NSK bearings with oil lubrication and oil cooling system, the service life of the bearing is increased by 3-5 times.

Technical Parameter:

Model Host power (kw) Capacity(t/h) Note
Soybean Corn
SPH80-S 7.5/15/18.5 200-400 75-200 The actual yield and the quality of raw materials, water, steam quality and product maturity
SPH100-S 22/30/37/45 500-1000 200-600
SPH135-S 55/75/90 900-1800 600-1000
SPH160-S 90/110 1500-2500 1000-1800
SPH200-S 110/132/160 2200-3500 1500-2500
