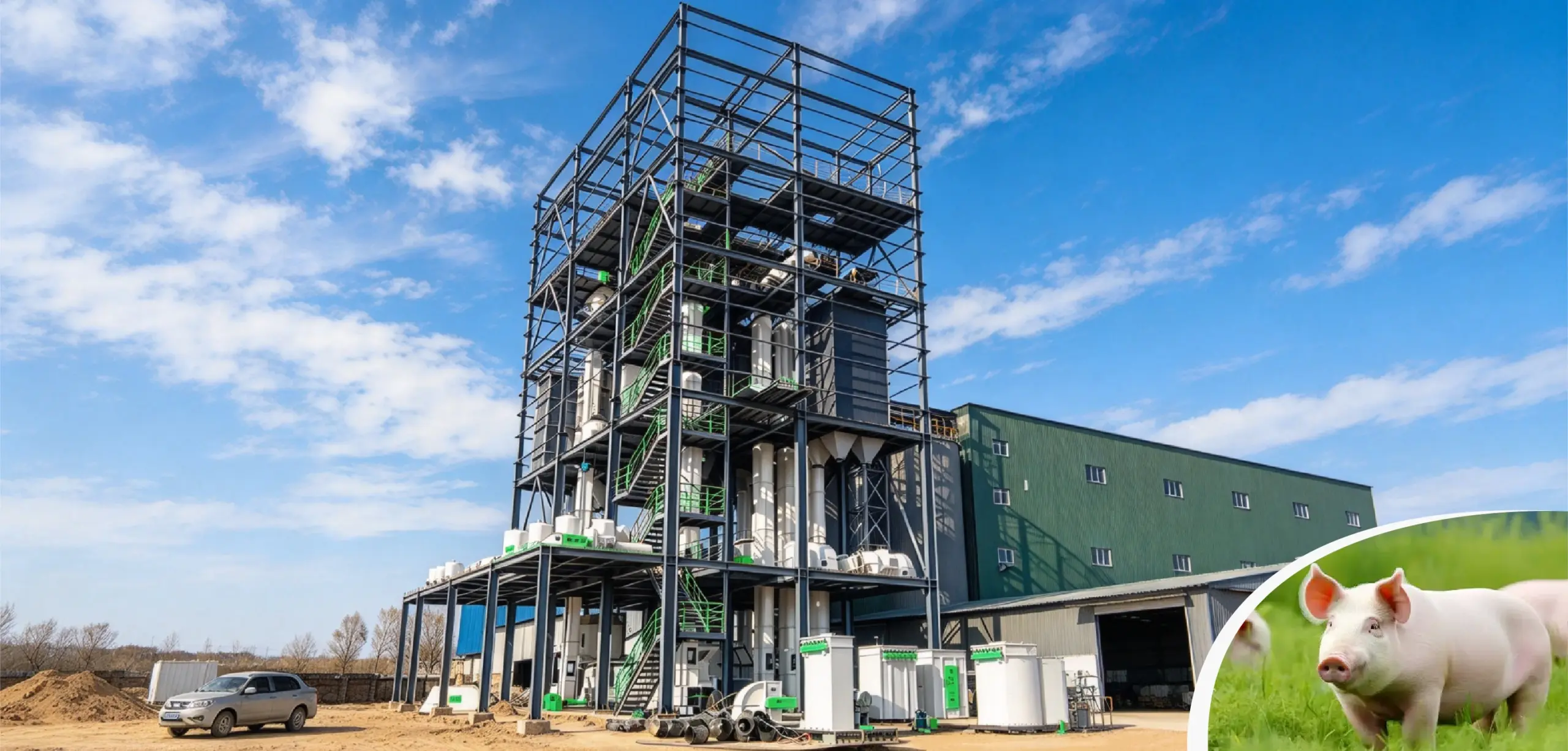

Luodate Machinery's 10 TPH Pig Feed Production Line is designed for feed manufacturers and investors planning to produce pellet feed for pigs. With a planned capacity of 10 tons per hour, the line integrates the main processing stages required to transform raw ingredients into finished pig feed pellets.
From raw material cleaning and grinding to ingredient batching, mixing, pelletizing, cooling, screening, and packaging, each stage plays an important role in producing feed that meets your formulation and product requirements.
As an experienced animal feed machinery manufacturer, Luodate Machinery provides customized production line solutions based on your raw materials, feed formulas, workshop conditions, and production targets. Batching and packaging systems can be configured for automatic or manual operation, giving you flexibility when planning your feed mill.
Beyond equipment supply, Luodate Machinery supports customers with production line planning, installation guidance, and technical assistance to help make the transition from project planning to factory operation more manageable.
| Parameter | Specification |
|---|---|
| Capacity (t/h) | 10-12 TPH |
| Pellet Mill | SZLH 420 |
| Automation Grade | Fully Automatic Computer-Controlled |
| Plant Layout | Vertical |
| Pellet Size (mm) | 1.0–12.0 mm |
| Final Product | Pellet Feed and Powder Feed |
| Batching System | Automatic |
| Packaging System | Automatic |
Note: Actual output and equipment configuration depend on the feed formula, raw materials, pellet specifications, selected equipment, and operating conditions.
Corn
Wheat
Barley
Rice Bran
Wheat Bran
Soybean Meal
The exact ingredients and proportions should be determined by the feed formula. Luodate Machinery can evaluate your available raw materials and processing requirements to help select suitable grinding, batching, mixing, and pelletizing equipment.
How Does a 10 TPH Pig Feed Production Line Work?
If you are planning to build a pig feed mill for the first time, understanding how the production process works is just as important as choosing the machinery. A production line is not simply a collection of individual machines; each stage prepares the materials for the next one.
A typical animal feed pellet production line may include raw material cleaning, grinding, batching, mixing, pelletizing, cooling, screening, and packaging. The final process flow depends on the selected equipment configuration and production requirements.
The production process and equipment configuration below are the standard animal feed production line for 10 TPH. Luodate Machinery can add, remove, or adjust equipment according to your feed type, raw materials, production capacity, and specific requirements. The following sections explain the main processing stages and the function of each type of equipment.
Raw materials may contain stones, metal particles, strings, or other unwanted impurities from harvesting, transportation, and storage. Cleaning equipment removes suitable impurities before the ingredients enter the main processing stages. This helps protect downstream machinery, reduce unnecessary wear, and support stable production.
Many raw ingredients, such as corn and other grains, need to be ground before they can be mixed and pelletized effectively. A grinder reduces the ingredients to a suitable particle size. The required fineness depends on the feed formula, raw material characteristics, and desired pellet quality.
Pig feed is made from multiple ingredients in specific proportions. The batching system weighs each ingredient according to the feed formula so that the correct quantities can be combined. Depending on the process design, batching may take place before or after grinding. Luodate Machinery determines the appropriate arrangement based on the ingredients, formulation, and required processing method.
After the ingredients have been measured and prepared, they enter a mixer. The mixer distributes the different ingredients throughout the mixture to achieve a more uniform feed blend. Mixing time and equipment selection depend on the formula and production requirements.
The prepared mixture is fed into a pellet mill, where rollers press the material through a die to form pellets. The die opening and operating conditions are selected according to the required pellet size and feed characteristics. This line is specified for pellet sizes of 1–12 mm, subject to the selected equipment and configuration.
After pelletizing, cooling equipment helps reduce pellet temperature. This stage prepare the finished pellets for subsequent packaging, storage, and transportation more quickly.
Luodate Machinery screening equipment separates finished pellets by size, helping remove fine particles and classify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packaging.
Prepare Finished Feed for Storage and Delivery
After processing, the finished pig feed pellets are weighed and packed into bags or other suitable packaging. The packaging system can be configured for automatic or manual operation according to your workflow and production requirements.
This flow illustrates the main processing stages rather than the exact physical layout of the factory. The batching and grinding sequence, conveying equipment, storage bins, and other auxiliary systems will be determined during detailed process design.
Poultry Feed
Cattle Feed Pellets
Chicken Feed Pellets
Pig Feed Pellets
Sheep & Goat Feed Pellets
Duck Feed Pellets
Livestock Feed Pellets
Aquafeed Pellets
Every feed mill has different requirements. Luodate Machinery develops equipment configurations based on your target capacity, feed formula, raw materials, pellet specifications, and available workshop space rather than relying on a one-size-fits-all layout.
A successful production line requires more than individual machines. Luodate Machinery considers how the cleaning, grinding, batching, mixing, pelletizing, cooling, screening, and packaging stages work together to support a coordinated production process.
For customers building a new feed mill, understanding equipment selection and process flow can be challenging. Luodate Machinery can provide production line planning, equipment recommendations, installation guidance, and technical assistance according to the project scope.
With over 30 years of manufacturing experience, Luodate Machinery works with customers to develop animal feed production solutions for different capacities and feed requirements. Our focus is to help you identify a suitable configuration for your production goals and factory conditions.
It may be suitable if your planned production volume, investment budget, raw material supply, and market demand support this capacity. Before selecting equipment, consider your expected daily output, operating hours, available workshop space, and future production plans. We can use these details to help assess a suitable configuration.
To prepare a suitable solution, please share your target production capacity, intended feed types, raw materials, required pellet sizes, local power supply, and available factory space. Our team can use this information to recommend an appropriate equipment configuration.
The line may be configured to produce different pig feed formulations, but the required grinding fineness, formula, pellet size, and operating settings may vary by product. The equipment and die configuration should be evaluated against the specific feed types you plan to manufacture.
The main processing stages are outlined above, but the final equipment list depends on the project design. Raw material storage, conveying, elevators, bins, electrical control systems, and other auxiliary equipment may need to be included according to your factory layout and operating requirements. Luodate Machinery can prepare a project-specific equipment configuration after reviewing your needs.
Didn't find the answers you were looking for? Contact Luodate Machinery to discuss your feed production requirements and request a customized solution.
