Customized Feed Manufacturing Solutions for Poultry and Livestock

An animal feed production line combines specialized machines to process grains, protein meals, and other suitable ingredients into finished feed for livestock and poultry. Luodate Machinery provides customized feed manufacturing solutions for feed mills, agricultural businesses, and livestock farms with different production targets.
Depending on the feed formula and finished product requirements, the system may include raw material cleaning, grinding, automatic or manual batching, mixing, pelletizing, cooling, screening, and packaging. Customers can choose a mash feed processing system, a pellet feed production line, or a combined configuration for multiple product types.
From small-scale farm feed production to commercial feed manufacturing, the equipment arrangement can be adapted to production capacity, available factory space, labor requirements, and investment plans.
| Parameter | Specification |
| Capacity (t/h) | 1-100 TPH (based on your needs) |
| Pellet Size (mm) | 1.0-12.0 mm (based on your needs) |
| Applicable Feed Types | Poultry Feed / Livestock Feed |
| Plant Layout | Horizontal / Vertical (based on your space) |
| Final Product | Pellet feed / Powder feed (based on your needs) |
| Batching System | Automatic / Manual (based on your needs) |
| Packaging System | Automatic / Manual (based on your needs) |

Corn / Maize

Wheat

Barley

Sorghum

Rice Bran

Cassava Meal

Wheat Bran

Soybean Meal

Alfalfa

Hay
Raw material selection and ingredient ratios can be customized according to locally available crops, regional farming practices, and your specific feed formulation requirements. The other locally available ingredients can also be considered for your production line.
How to make Animal Feed? Check this:

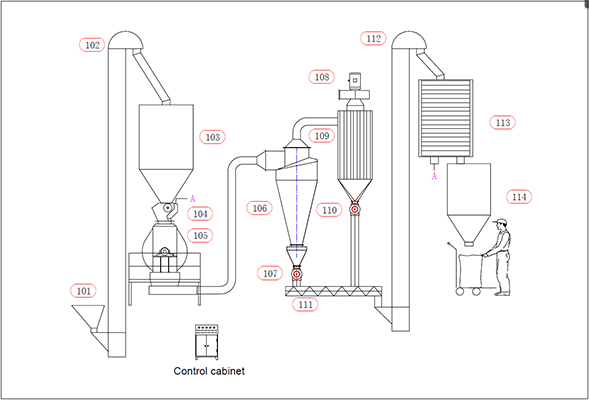

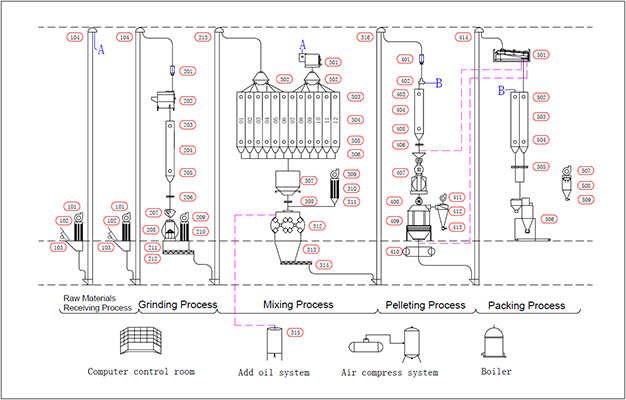

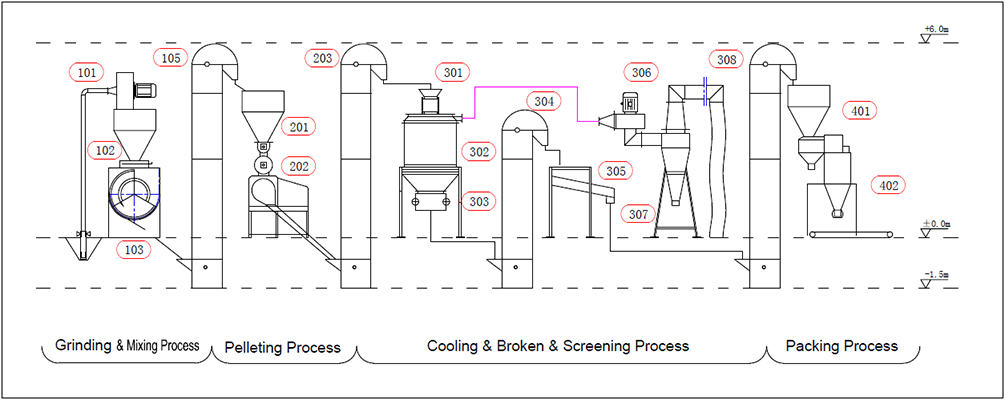

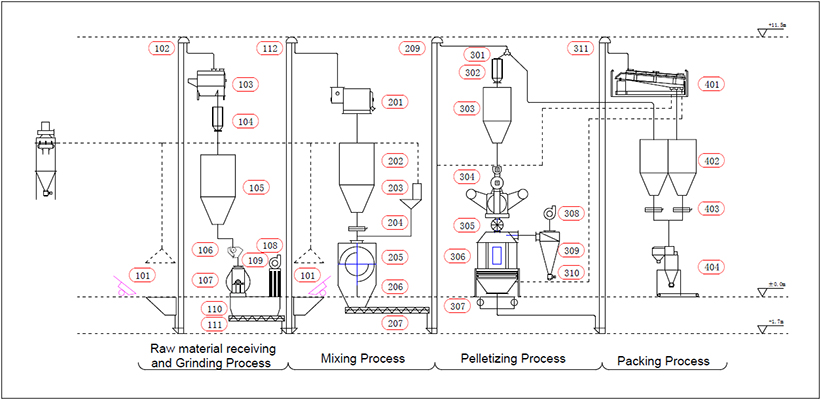

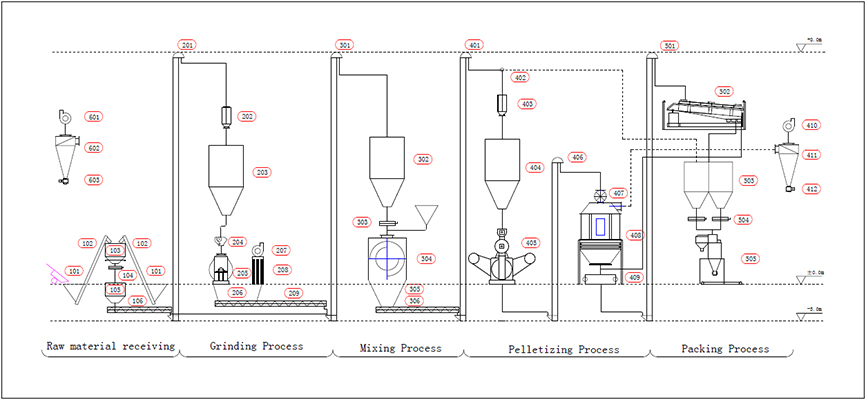

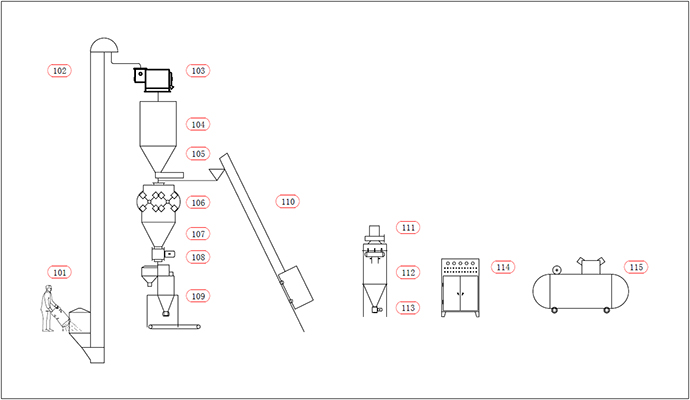

A typical animal feed pellet production line may include raw material cleaning, grinding, batching, mixing, pelletizing, cooling, crumbling, screening, and packaging. The final process flow depends on the selected equipment configuration and production requirements.
If your raw mateirals include hay or straw, a grass grinder should be added to process it into smaller particles before the whole production process, the detailed configuration depends on your raw material characteristics and required particle size. For customers producing feed for chicks and other young animals, a pellet crumbler can be added after the pellet cooler to break larger pellets into smaller particles. Whether this equipment is necessary depends on the required feed size and the animals being fed.
Luodate Machinery can add, remove, or adjust the equipments in this production process to match your production requirements and target production goal.


Luodate Machinery's cleaning equipment removes impurities such as stones, dust, and other unwanted materials from incoming raw materials before further processing. This helps protect downstream equipment, improve processing reliability, and support consistent feed production.
Luodate Machinery's grinding equipment is designed to reduce raw materials to a suitable particle size for feed processing. Its grinding technology supports consistent material preparation, helping improve the uniformity of ingredients before mixing and pelletizing.


Luodate Machinery's batching system measures and combines different raw materials according to the specified feed formula. Available configurations can be tailored to production requirements, helping maintain consistent ingredient proportions and reliable feed quality.
Designed for efficient blending of multiple feed ingredients, Luodate Machinery's double-shaft paddle mixer combines rapid mixing with a specialized paddle arrangement to achieve uniform ingredient distribution. The design supports consistent feed formulations and efficient batch processing.


Luodate Machinery's feed pelletizing solutions can incorporate multi-stage conditioning technology to prepare feed materials before pellet formation. This process supports starch gelatinization and pellet durability, helping improve pellet quality and maintain efficient production.
After pelletizing, cooling equipment helps reduce pellet temperature. This stage prepare the finished pellets for subsequent packaging, storage, and transportation more easily, meanwhile, it increases the productivity.


Luodate Machinery's crumbling equipment reduces raw materials to a suitable particle size for feed processing. This optional step is specially designed for farms raising chicks, ensuring the feed size is easy for baby chicks to ingest and digest. By adjusting the roller gap, you can seamlessly switch between standard pellets and micro-crumbles based on your production needs.
Luodate Machinery screening equipment separates finished pellets by size, helping remove fine particles and classify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packaging.


Flexible Finished Feed Handling
Luodate Machinery configures fully automated packaging systems tailored to your production scale. Integrated seamlessly into the processing line, our equipment performs precise quantitative weighing, automatic bag clamping, conveying, and sealing. By replacing manual handling, it eliminates packaging bottlenecks, drastically reduces labor costs, and ensures consistent finished feed quality.

Poultry Feed

Cattle Feed Pellets

Chicken Feed Pellets

Livestock Pellets

Pig Feed Pellets

Sheep & Goat Feed Pellets

Duck Feed Pellets

Livestock Feed Pellets

Cattle Pellets

Aquafeed Pellets

Production line layouts can be configured according to your target output and processing requirements.

Key processing stages and material transfer equipment are considered as part of the overall line layout.

Equipment selection can be adjusted to the required feed type, batching method and packaging needs.

Equipment can be supplied as individual units or integrated into a complete production line, depending on the project scope.
The final equipment list depends on the process design and factory conditions. Storage bins, elevators, conveyors, electrical control systems, and other auxiliary equipment may need to be included to connect the processing stages and support the intended workflow. Luodate Machinery can develop a project-specific equipment list after reviewing your requirements.
Yes. Share the main ingredients you plan to use, their physical characteristics where available, and your intended feed formulas. Luodate Machinery can evaluate the processing requirements and recommend a suitable configuration. The suitability of each ingredient must be assessed against the intended formula and finished product.
Luodate Machinery can provide installation guidance and technical assistance according to the project scope. The specific support arrangements should be confirmed during project discussions so that the installation plan, customer responsibilities, and technical requirements are clear before the equipment is delivered.
