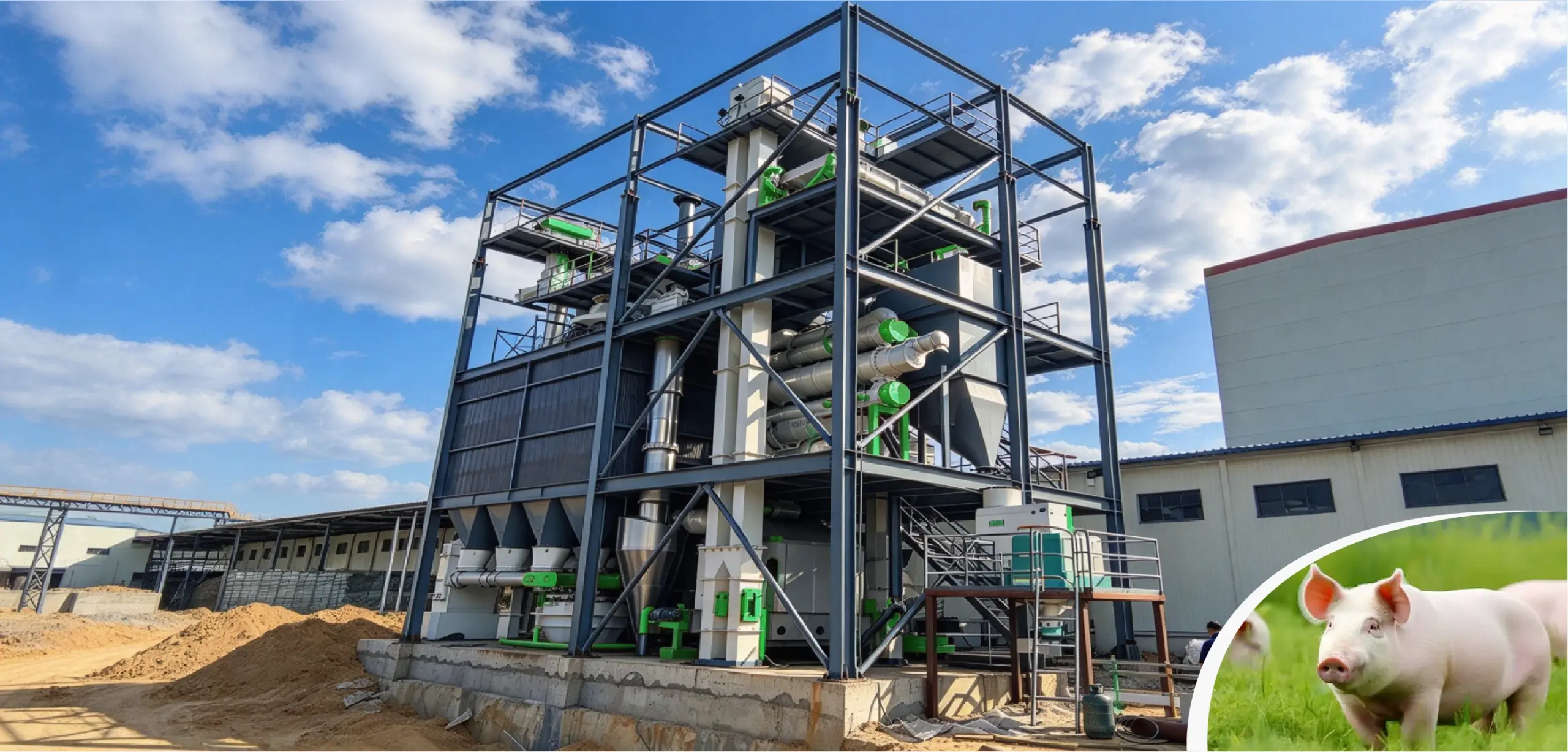

Luodate Machinery's 15 TPH Pig Feed Production Line is designed for feed manufacturers planning to produce pig feed pellets. With a rated capacity of 15 tons per hour, the line brings together the main processing stages needed to turn raw ingredients into finished pellets, from cleaning and grinding to batching, mixing, pelletizing, cooling, screening, and packaging.
At this production scale, coordinating the equipment and material flow is an important part of production line planning. Each processing stage needs to work with the next to support stable operation and meet the requirements of the intended feed formulas and finished products.
Luodate Machinery provides customized animal feed production solutions based on your raw materials, feed formulas, production targets, and factory conditions. Batching and packaging systems can be configured for automatic or manual operation according to your production needs.
With over 30 years of manufacturing experience, Luodate Machinery supports customers with equipment selection, production process planning, installation guidance, and technical assistance to help turn project requirements into a practical feed mill solution.
| Parameter | Specification |
|---|---|
| Capacity (t/h) | 15 TPH |
| Pellet Mill | SZLH 420 / 508 |
| Automation Grade | Fully Automatic Computer-Controlled |
| Plant Layout | Vertical |
| Pellet Size (mm) | 1.0–12.0 mm |
| Final Product | Pellet Feed and Powder Feed |
| Batching System | Automatic |
| Packaging System | Automatic |
| Supplier | Luodate Machinery |
Note: Actual output and equipment configuration depend on the feed formula, raw materials, pellet specifications, selected equipment, and operating conditions.
Corn
Wheat
Barley
Rice Bran
Sunflower Meal
Wheat Bran
Soybean Meal
Canola Meal
The choice and proportion of ingredients depend on the nutritional requirements of the pigs and the intended feed products. Luodate Machinery can evaluate your available raw materials and processing requirements to help determine an appropriate equipment configuration.
How Does a 15 TPH Pig Feed Production Line Work?
A typical animal feed pellet production line may include raw material cleaning, grinding, batching, mixing, pelletizing, cooling, screening, and packaging. The final process flow depends on the selected equipment configuration and production requirements.
Building a feed mill involves more than selecting individual machines. The production process must connect each stage in the correct sequence so that raw materials can move efficiently from preparation to finished feed.
The production process and equipment configuration below are the standard animal feed production line for 10 TPH. Luodate Machinery can add, remove, or adjust equipment according to your feed type, raw materials, production capacity, and specific requirements. The following sections explain the main processing stages and the function of each type of equipment.

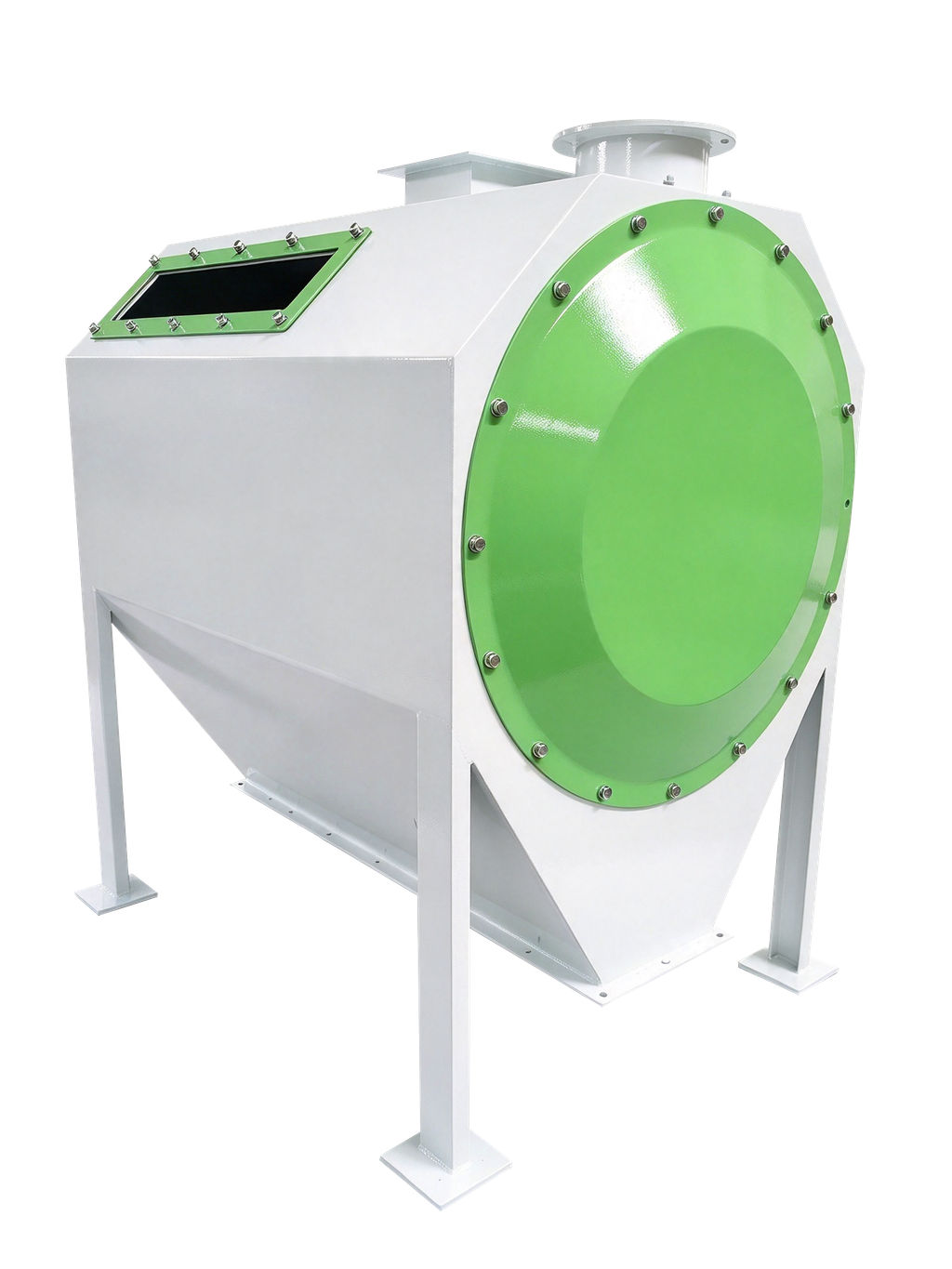

Raw materials can contain unwanted materials such as stones, metal particles, strings, and other impurities from harvesting, transportation, or storage. Cleaning equipment removes suitable impurities before the ingredients enter the main processing stages. This helps protect downstream machinery from unnecessary wear and supports more reliable operation.
ngredients such as corn and other grains may need to be ground before they can be mixed and pelletized effectively. The grinder reduces the raw materials to a suitable particle size. The required fineness depends on the ingredients, feed formula, and desired pellet characteristics.
Pig feed contains different ingredients in specific proportions. The batching system measures the required quantities according to the feed formula before the ingredients are combined. Batching can be configured for automatic or manual operation. Its position relative to grinding depends on the process design, raw material characteristics, and feed formulation.
Once the ingredients have been prepared and measured, they are combined in a mixer. The mixer distributes the ingredients throaughout the batch to produce a more uniform mixture. The mixer and operating settings should be selected according to the feed formula and production requirements.
The prepared mixture enters the pellet mill, where rollers press the material through a die to form pellets. The die specifications and operating conditions are selected according to the desired pellet size and the characteristics of the feed mixture. This production line is specified for pellet sizes of 1–12 mm, subject to the selected equipment and configuration.
After pelletizing, cooling equipment helps reduce pellet temperature. This stage prepare the finished pellets for subsequent packaging, storage, and transportation more quickly.

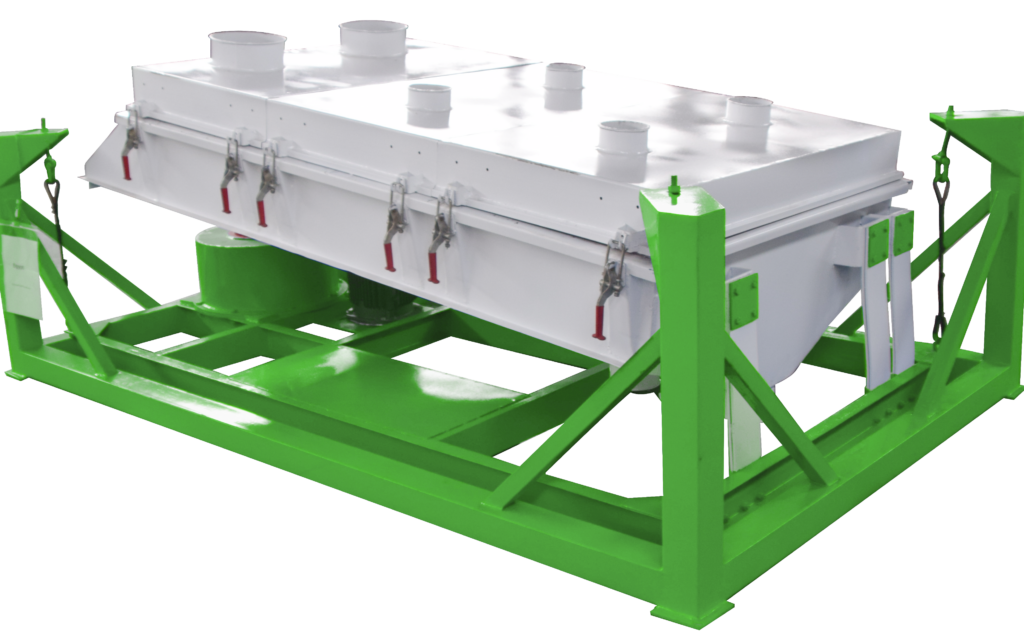

Luodate Machinery screening equipment separates finished pellets by size, helping remove fine particles and classify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packaginks.
Weigh and Pack the Finished Feed
After cooling and screening, the finished pig feed pellets are weighed and packed for storage, transportation, or distribution. Luodate Machinery can configure the packaging system for automatic or manual operation according to your preferred workflow and production requirements.
This process illustrates the main processing stages, not the exact physical arrangement of the factory. The actual batching and grinding sequence, conveying system, storage bins, and auxiliary equipment will be confirmed during project-specific process design.
Poultry Feed
Cattle Feed Pellets
Chicken Feed Pellets
Pig Feed Pellets
Sheep & Goat Feed Pellets
Duck Feed Pellets
Livestock Feed Pellets
Aquafeed Pellets
LUODATE can evaluate your feed requirements and help determine a suitable production process for the intended finished products.
Different feed formulas, raw materials, and factory conditions require different equipment arrangements. Luodate Machinery customizes the production line according to your target capacity, processing requirements, pellet specifications, and available workshop space.
A production line must work as a connected system, not simply as a group of separate machines. Luodate Machinery considers the relationship between cleaning, grinding, batching, mixing, pelletizing, cooling, screening, and packaging when developing the proposed process flow.
For customers planning a new factory, decisions about equipment arrangement and material flow can be challenging. Luodate Machinery can assist with equipment selection, preliminary process planning, installation guidance, and technical support according to the project scope.
With over 30 years of manufacturing experience, Luodate Machinery provides animal feed machinery and customized production line solutions for different production requirements. Our team works with customers to evaluate their needs and develop a configuration suited to their intended operation.
Potentially, yes. Suitability depends on the characteristics of the available ingredients and whether they meet the requirements of your intended feed formula. Providing Luodate Machinery with a list of your main raw materials can help the team evaluate the required grinding, batching, and mixing configuration.
The final equipment list depends on the process design and factory conditions. Storage bins, elevators, conveyors, electrical control systems, and other auxiliary equipment may need to be included to connect the processing stages and support the intended workflow. Luodate Machinery can develop a project-specific equipment list after reviewing your requirements.
The line may be configured to produce feed for different pig growth stages, depending on the required formulas and pellet specifications. Changes in feed formula, grinding requirements, or pellet size may require adjustments to the operating settings or equipment configuration.
LUODATE can provide installation guidance and technical assistance according to the project scope. The specific support arrangements should be confirmed during project discussions so that the installation plan, customer responsibilities, and technical requirements are clear before the equipment is delivered.
