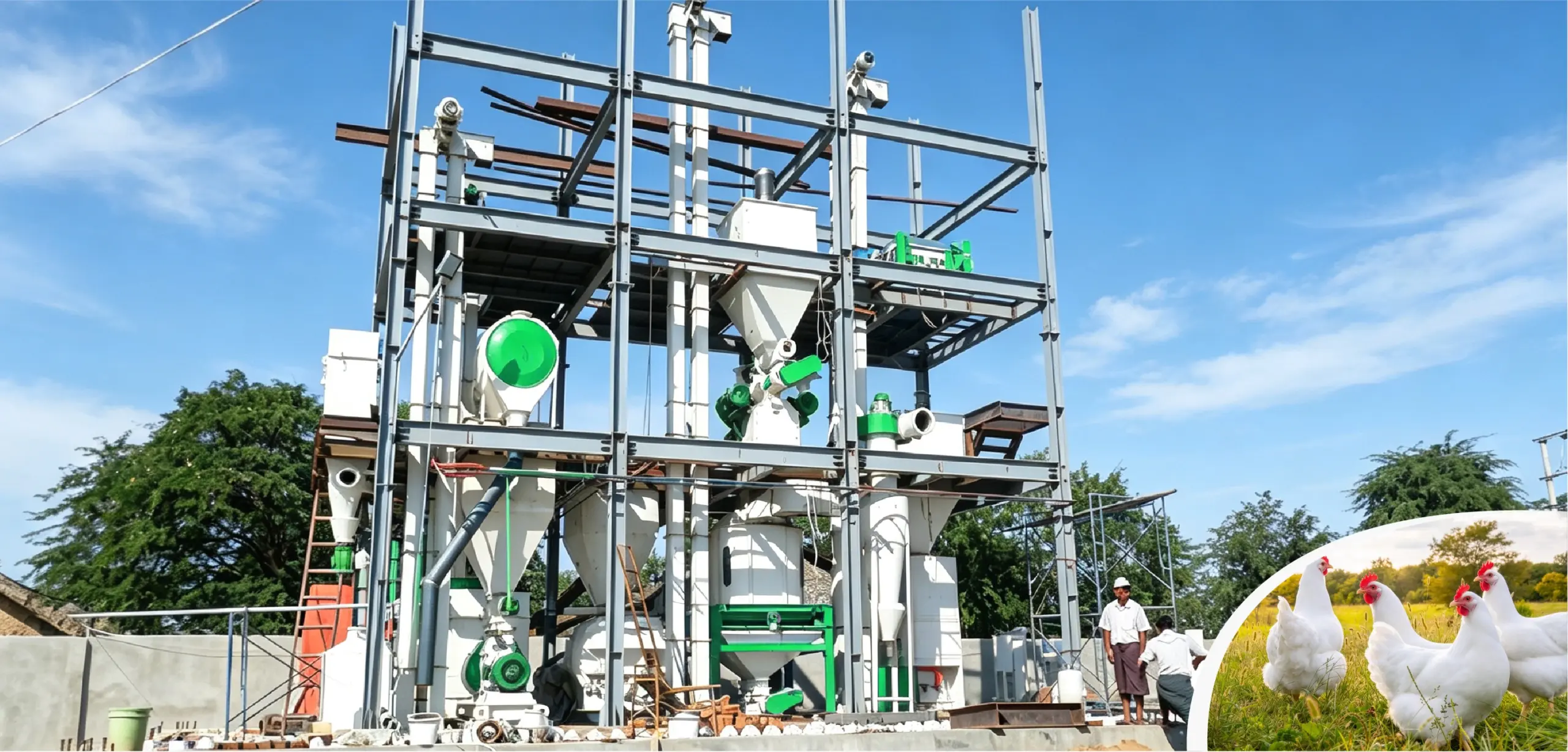

Luodate Machinery's 3–4 TPH poultry feed production line is designed for producing poultry feed in pellet or powder form. With a production capacity of 3–4 tons per hour, the line can be configured according to your feed formula, raw materials, and production requirements. Batching and packaging systems are available in automatic or manual configurations to suit different operating needs.
The production line is designed to produce pellet feed with pellet sizes ranging from 1.0 to 12.0 mm. Depending on your requirements, the batching and packaging systems can be configured for automatic or manual operation.
From equipment selection to production line configuration, Luodate Machinery helps customers find a suitable feed production solution based on their production capacity, operating preferences, and project needs.
| Parameter | Specification |
|---|---|
| Capacity (t/h) | 3-4 TPH |
| Pellet Mill | SZLH 320 |
| Plant Layout | Flexible (Horizontal or Vertical) |
| Pellet Size (mm) | 1.0–12.0 mm |
| Final Product | Pellet Feed and Powder Feed |
| Batching System | Automatic / Manual |
| Packaging System | Automatic / Manual |
Different output animal feed equipment can be customized according to different feed types and output capacity requirement from clients.
Corn
Wheat
Barley
Rice Bran
Sunflower Meal
Wheat Bran
Soybean Meal
Canola Meal
Raw material selection and ingredient ratios can be customized according to locally available crops, regional farming practices, and your specific feed formulation requirements. The materials shown are examples only, and other locally available ingredients can also be considered for your production line.
A typical animal feed pellet production line may include raw material cleaning, grinding, mixing, pelletizing, cooling, crumbling, screening, and packaging. The final process flow depends on the selected equipment configuration and production requirements.
Luodate Machinery can add, remove, or adjust equipment according to your feed type, raw materials, production capacity, and specific requirements. The following sections explain the processing stages and the function of each type of equipment.
Luodate Machinery's cleaning equipment removes impurities such as stones, dust, and other unwanted materials from incoming raw materials before further processing. This helps protect downstream equipment, improve processing reliability, and support consistent feed production.
Luodate Machinery's crushing equipment is designed to reduce raw materials to a suitable particle size for feed processing. Its grinding technology supports consistent material preparation, helping improve the uniformity of ingredients before mixing and pelletizing.

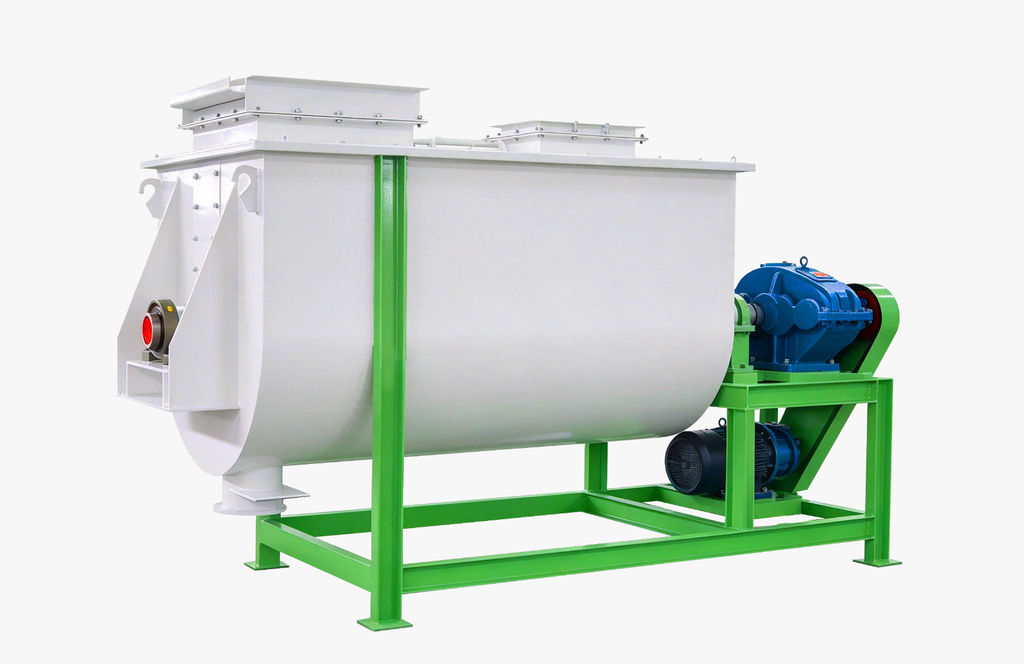

Designed for efficient blending of multiple feed ingredients, Luodate Machinery's twin-shaft paddle mixer combines rapid mixing with a specialized paddle arrangement to achieve uniform ingredient distribution. The design supports consistent feed formulations and efficient batch processing.

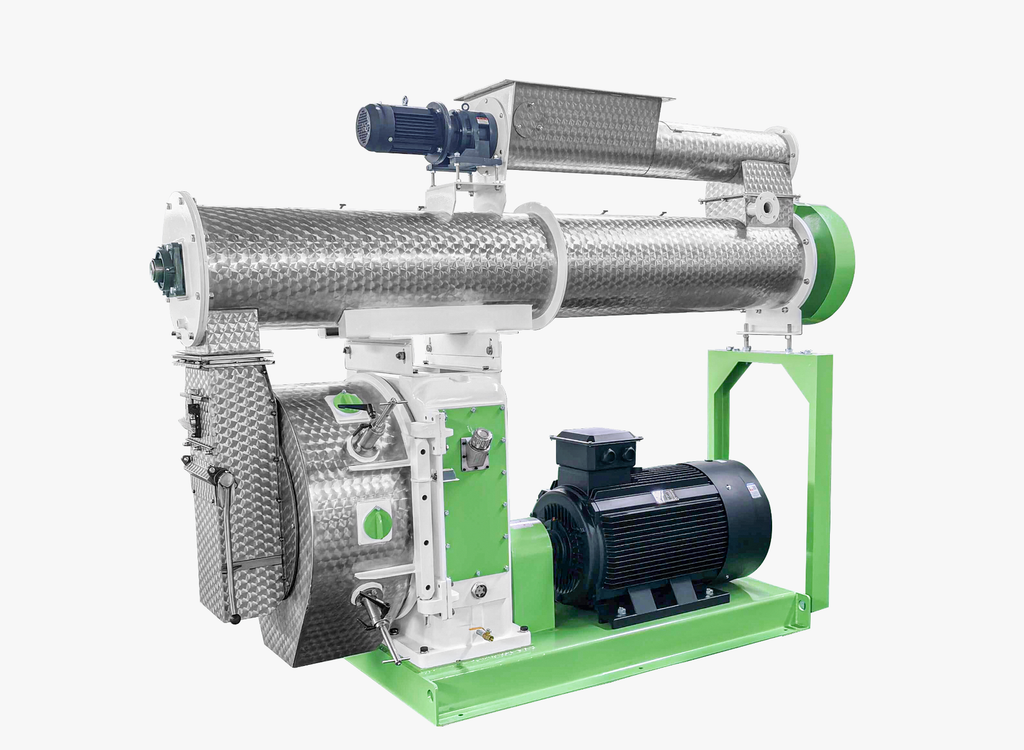

Luodate Machinery's feed pelletizing solutions can incorporate multi-stage conditioning technology to prepare feed materials before pellet formation. This process supports starch gelatinization and pellet durability, helping improve pellet quality and maintain efficient production.
After pelletizing, cooling equipment helps reduce pellet temperature. This stage prepare the finished pellets for subsequent packaging, storage, and transportation more quickly. Luodate Machinery’s counterflow cooler extracts hot air and moisture by passing cool ambient air in the opposite direction of the warm pellets. This uniform counter-current process prevents rapid temperature drops that cause cracking, effectively lowering pellet heat and moisture to ideal levels for bagging and storage.
Luodate Machinery's crumbling equipment reduces raw materials to a suitable particle size for feed processing. This essential step is specially designed for farms raising chicks, ensuring the feed size is easy for baby chicks to ingest and digest. By adjusting the roller gap, you can seamlessly switch between standard pellets and micro-crumbles based on your production needs.
Luodate Machinery screening equipment separates finished pellets by size, helping remove fine particles and classify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packaging.
Flexible Finished Feed Handling
Luodate Machinery’s patented automatic packaging line streamlines your feed production by replacing manual labor with high-efficiency automation. Featuring precise computer-controlled weighing and automatic stitching, it ensures rapid packaging speeds, zero material wastage, and lower labor costs, delivering maximum operational efficiency and reliable product qualit
Poultry Feed
Cattle Feed Pellets
Chicken Feed Pellets
Pig Feed Pellets
Sheep & Goat Feed Pellets
Duck Feed Pellets
Livestock Feed Pellets
Aquafeed Pellets
Customizable output types and sizes (pellets, crumbles, or mash) tailored to your animal breeding needs.
Luodate Machinery develops tailored production line solutions based on your feed types, production capacity, budget, and specific requirements, helping you choose the right equipment for your operation.
Our equipment has earned the trust of repeat customers through years of reliable operation. Many customers continue using our machines for over a decade, while others return to upgrade or expand their equipment as their businesses grow.
From initial project design and equipment manufacturing to technical guidance, installation support, and after-sales service, Luodate Machinery provides support throughout the project lifecycle. Our team remains available to answer questions and help customers address equipment issues long after installation.
Luodate Machinery provides installation guidance and ongoing technical support to help customers with equipment setup, operation, and troubleshooting.
The choice depends on your poultry feeding practices, feed formula, storage and transportation arrangements, and target market. Pellet production requires additional processing steps, such as pelletizing and cooling, while powder feed may use a different equipment configuration. Your intended final product should therefore be confirmed before the production line is designed.
Actual output can vary with raw material characteristics, formula composition, grinding requirements, pellet specifications, and operating conditions. The stated capacity is a reference for production planning; the expected output for your particular feed formula should be evaluated when confirming the equipment configuration.
If you expect demand to increase, consider future capacity requirements, workshop space, storage, material handling, and the capacity of key processing equipment before finalizing the initial layout. LUODATE can evaluate potential expansion options based on your long-term production plan, although the feasibility of upgrades depends on the original design and site conditions.
Didn't find the answers you were looking for? Contact Luodate Machinery to discuss your feed production requirements and request a customized solution.
