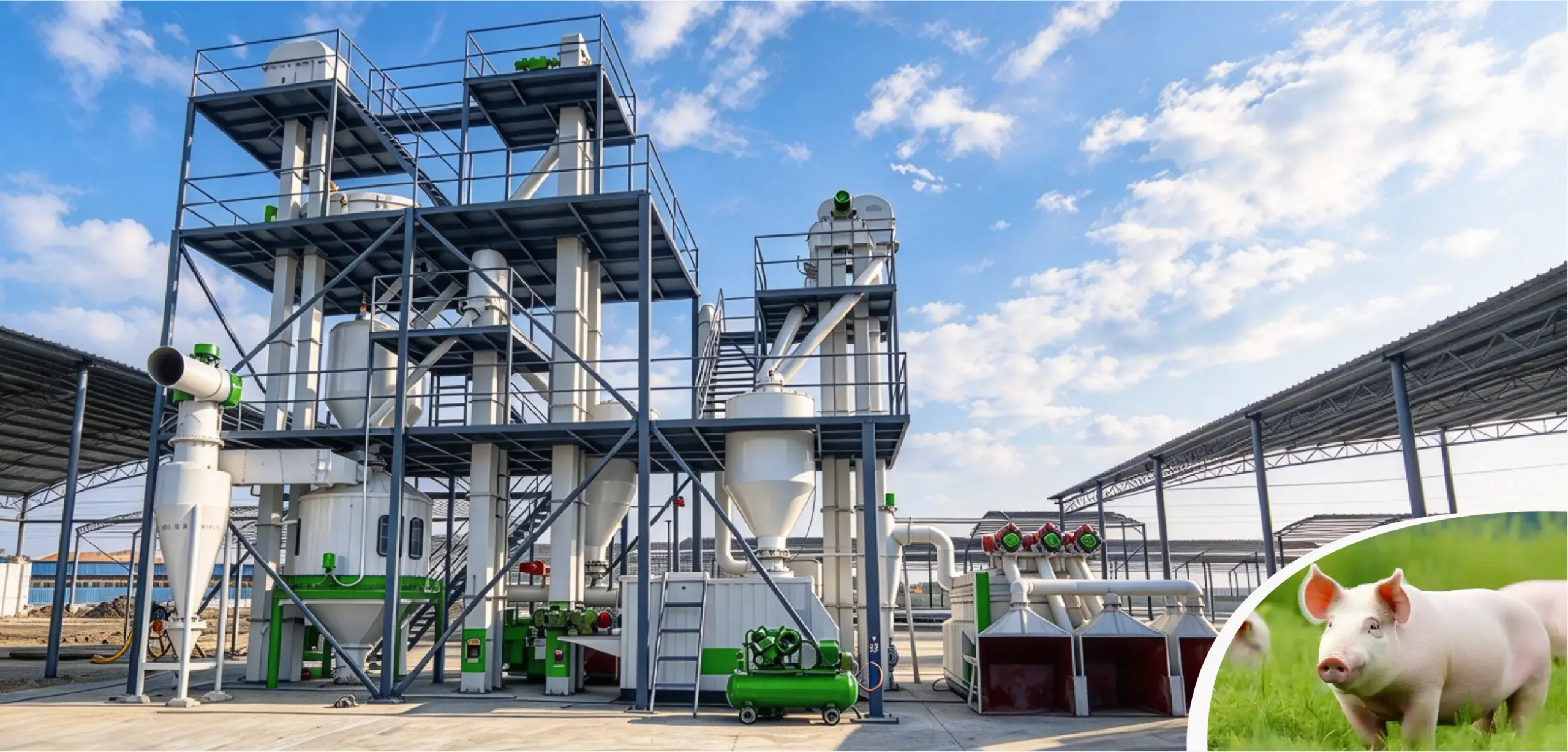

Luodate Machinery's 5–6 TPH Pig Feed Pellet Production Line with Batching Before Grinding is designed for producing pig feed pellets at a capacity of 5–6 tons per hour. In this process, raw ingredients are measured according to the feed formula before being sent to the grinding system. The prepared mixture is then ground, mixed, pelletized, cooled, screened, and packaged.
This process arrangement allows ingredients to be batched before grinding, with the equipment configuration tailored to the feed formula, raw material characteristics, and production requirements. Batching and packaging systems are available in automatic or manual configurations.
Luodate Machinery provides customized feed production solutions, from equipment selection and production line planning to installation guidance and ongoing technical support. Whether you are planning a new pig feed mill or upgrading an existing facility, our team can help evaluate a suitable configuration for your project.
| Parameter | Specification |
|---|---|
| Capacity (t/h) | 5-6 TPH |

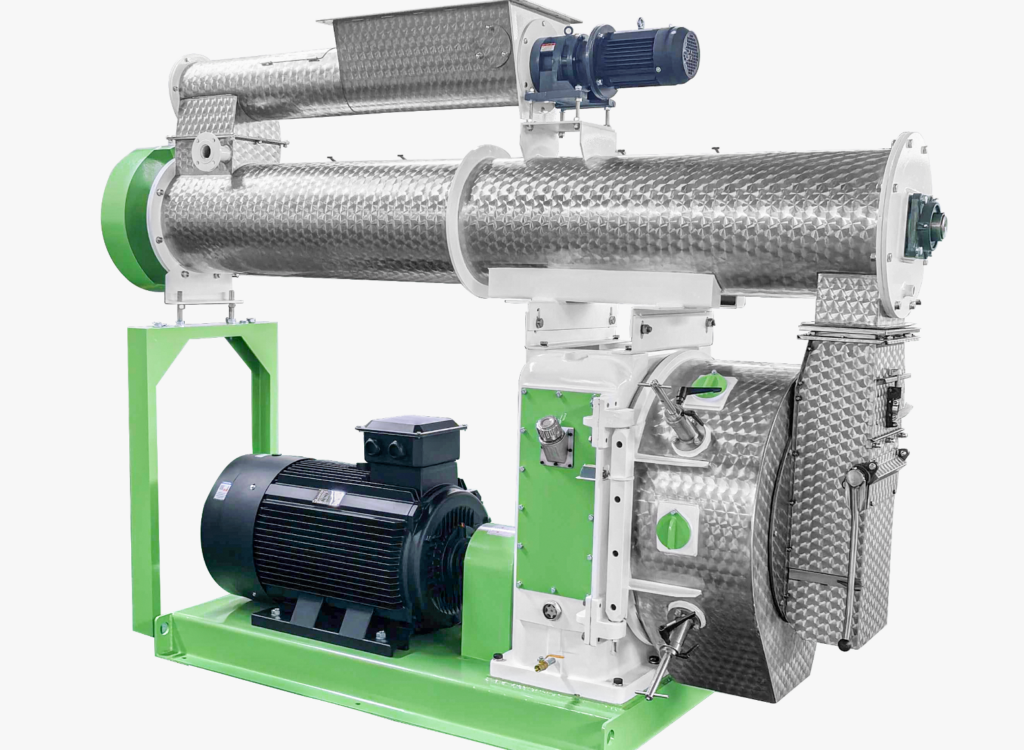

| Pellet Mill | SZLH 350 |
| Plant Layout | Flexible (Horizontal / Vertical) |
| Pellet Size (mm) | 1.0–12.0 mm |
| Final Product | Pellet Feed and Powder Feed |
| Batching System | Automatic / Manual |
| Packaging System | Automatic / Manual |
Corn
Wheat
Barley
Rice Bran
Sunflower Meal
Wheat Bran
Soybean Meal
Canola Meal
Raw material selection and ingredient ratios can be customized according to locally available crops, regional farming practices, and your specific feed formulation requirements. The other locally available ingredients can also be considered for your production line.
A typical animal feed pellet production line may include raw material cleaning, grinding, batching, mixing, pelletizing, cooling, screening, and packaging. The final process flow depends on the selected equipment configuration and production requirements.
The production process and equipment configuration below are the standard animal feed production line for 5-6 TPH. Luodate Machinery can add, remove, or adjust equipment according to your feed type, raw materials, production capacity, and specific requirements. The following sections explain the main processing stages and the function of each type of equipment.
How Is Pig Feed Produced with Batching Before Grinding?
Luodate Machinery's cleaning equipment removes impurities such as stones, dust, and other unwanted materials from incoming raw materials before further processing. This helps protect downstream equipment, improve processing reliability, and support consistent feed production.
Luodate Machinery's batching system measures and combines different raw materials are weighed according to the required pig feed formula before grinding. The batching system helps control the proportions of ingredients entering the process and can be configured for automatic or manual operation.

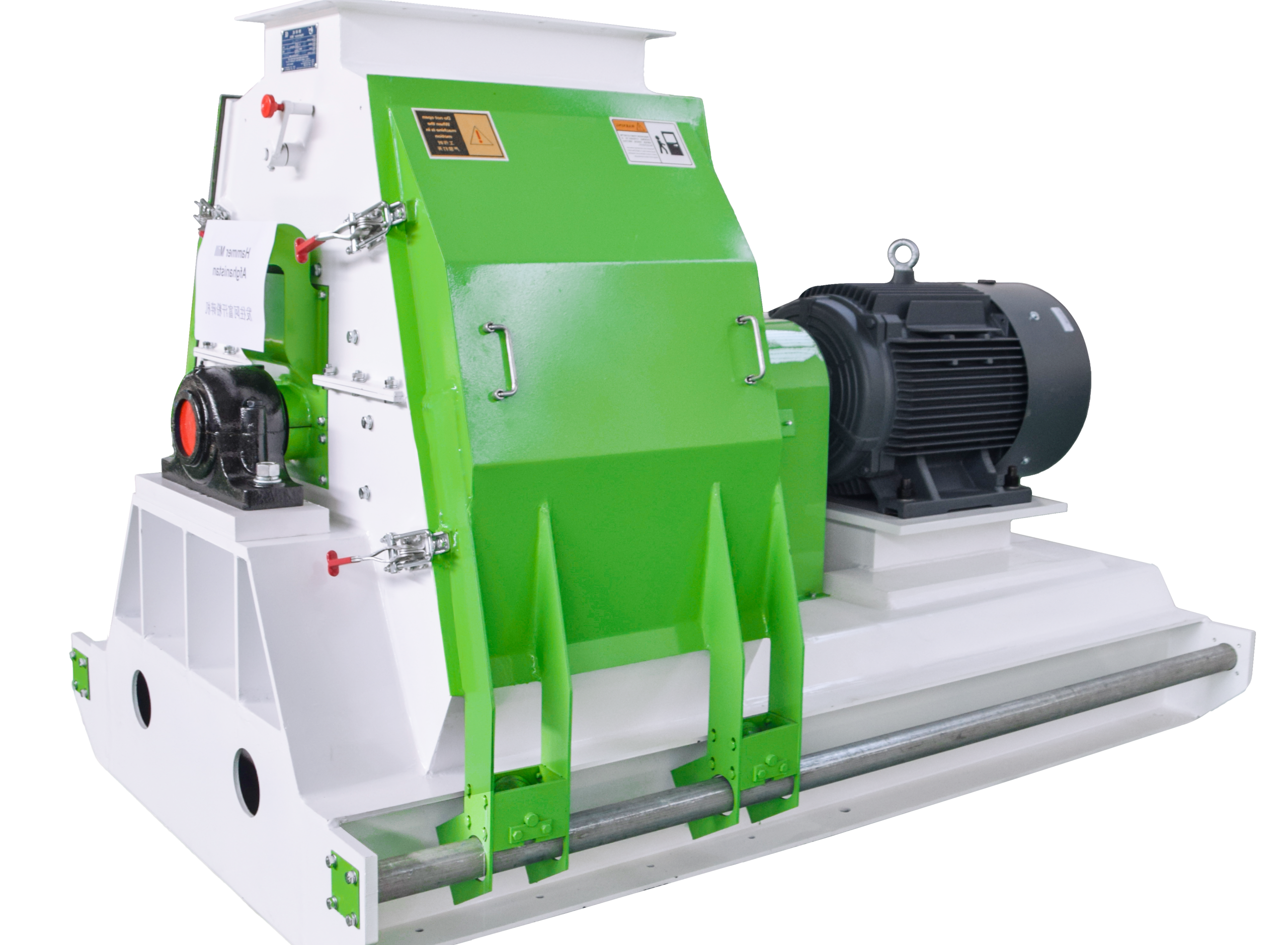

After batching, the selected ingredients are transferred to the grinding system. The grinder reduces the ingredients to a suitable particle size for further mixing and pellet production. The required particle size depends on the feed formula and the intended product specifications.

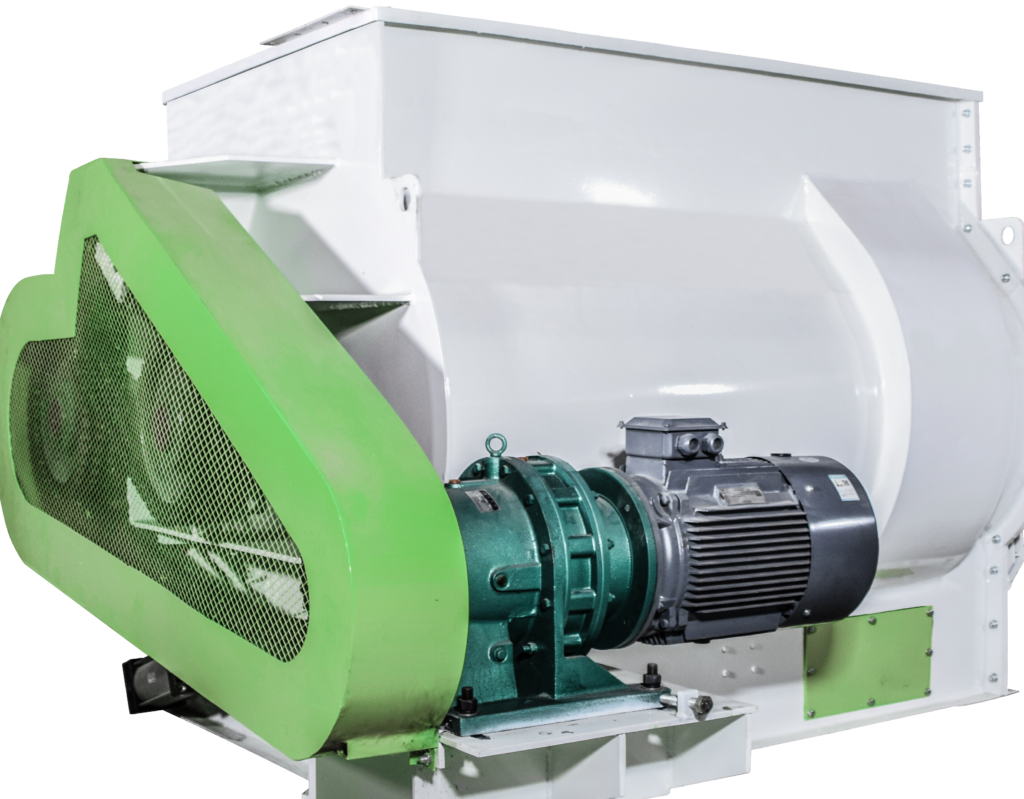

After batching, the ingredients are mixed to help distribute the components evenly throughout the feed mixture. Depending on the formula and process design, additional ingredients may be incorporated at this stage.
Luodate Machinery's feed pelletizing solutions can incorporate multi-stage conditioning technology to prepare feed materials before pellet formation. This process supports starch gelatinization and pellet durability, helping improve pellet quality and maintain efficient production.
After pelletizing, cooling equipment helps reduce pellet temperature. This stage prepare the finished pellets for subsequent packaging, storage, and transportation more quickly.
Luodate Machinery screening equipment separates finished pellets by size, helping remove fine particles and classify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packagin
Weigh and Pack the Finished Pig Feed
Luodate Machinery's can configure automatic or manual packaging systems according to production requirements. The finished pellets are transferred to the packaging system, where they are weighed and packed into the required bag sizes. Automatic or manual packaging options can be selected according to the customer's workflow and production requirements.
Poultry Feed
Cattle Feed Pellets
Chicken Feed Pellets
Pig Feed Pellets
Sheep & Goat Feed Pellets
Duck Feed Pellets
Livestock Feed Pellets
Aquafeed Pellets
The ingredients are measured according to the feed formula before entering the grinding system. This process arrangement can suit feed formulations and raw material handling requirements where batching before grinding is preferred. The final configuration should be evaluated according to the ingredients and production objectives.
Luodate Machinery selects and arranges equipment according to your feed formula, raw materials, target capacity, and factory conditions. The production line can be planned around your actual requirements rather than relying on a fixed, one-size-fits-all arrangement.
From initial project design and equipment manufacturing to technical guidance, installation support, and after-sales service, Luodate Machinery provides support throughout the project lifecycle. Our team remains available to answer questions and help customers address equipment issues long after installation.
Luodate Mahchinery provides equipment selection assistance, production line planning, installation guidance, and ongoing technical support. Our team can help address technical questions during installation and operation, supporting customers as they establish and manage their feed production facilities.
Batching before grinding means that the raw ingredients are measured according to the feed formula before they enter the grinder. The batched ingredients are then ground and processed through the remaining stages. This differs from a process in which individual ingredients are ground before being weighed and batched. The suitable arrangement depends on the feed formula, raw materials, and production requirements.
The main difference is when raw materials are measured according to the feed formula.
Batching before grinding: Raw materials are weighed according to the formula before entering the grinder. The measured ingredients are then ground together. This arrangement may simplify the grinding process when different ingredients can be processed under the same grinding conditions.
Batching after grinding: Raw materials are ground separately first and then weighed and mixed according to the formula. This allows the grinding process to be adjusted for different ingredients before they are combined.
The most suitable arrangement depends on the feed formula, raw material characteristics, required particle size, and production process. LUODATE can recommend a suitable configuration based on your specific production requirements.
Not necessarily. The appropriate process depends on the characteristics of the raw materials, the formula, the required particle size, and how ingredients need to be handled. LUODATE can evaluate your proposed ingredients and feed requirements before recommending a suitable process arrangement.
