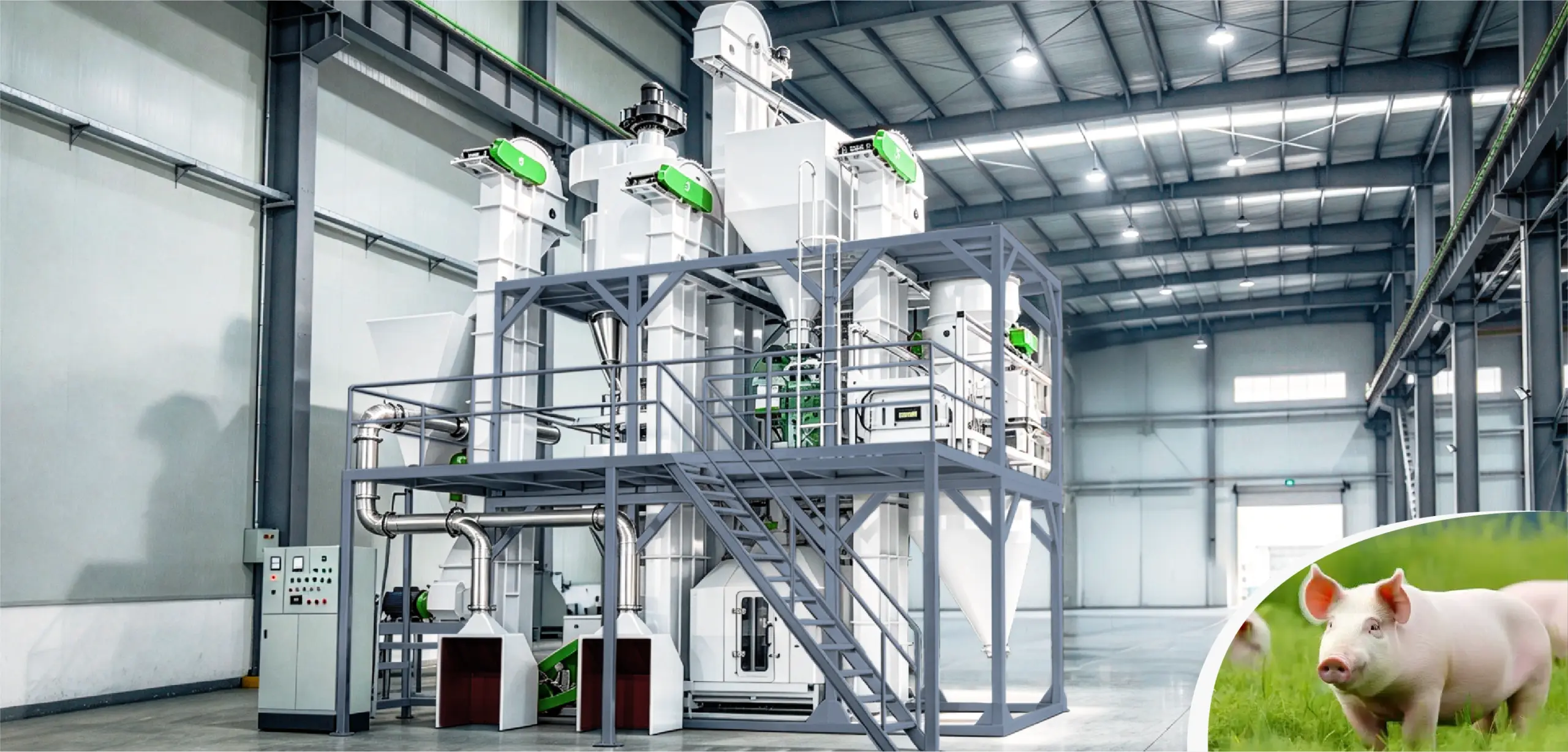

Luodate Machinery's 5–6 TPH Pig Feed Pellet Production Line is designed to produce high-quality pellet feed for pigs at different growth stages. The production process typically includes raw material cleaning, grinding, batching, mixing, pelletizing, cooling, screening, and packaging.
The equipment configuration can be customized according to your feed formula, raw material characteristics, required pellet size, and production capacity. Batching and packaging systems can be configured for automatic or manual operation to meet different production needs.
With over 30 years of manufacturing experience, Luodate Machinery provides customized animal feed production solutions, along with technical guidance and installation support to help customers establish and operate their feed mills.
| Parameter | Specification |
|---|---|
| Capacity (t/h) | 5-6 TPH |
| Pellet Mill | SLZH 350 |
| Plant Layout | Flexible (Horizontal or Vertical) |
| Pellet Size (mm) | 1.0–12.0 mm |
| Final Product | Pellet Feed and Powder Feed |
| Batching System | Automatic / Manual |
| Packaging System | Automatic / Manual |
| Supplier | Luodate Machinery |
Different output animal feed equipment can be customized according to different feed types and output capacity requirement from clients.
Corn
Wheat
Barley
Rice Bran
Wheat Bran
Soybean Meal
Canola Meal
Raw material selection and ingredient ratios can be customized according to locally available crops, regional farming practices, and your specific feed formulation requirements. The other locally available ingredients can also be considered for your production line.
A typical animal feed pellet production line may include raw material cleaning, grinding, mixing, pelletizing, cooling, screening, and packaging. The final process flow depends on the selected equipment configuration and production requirements.
Luodate Machinery can add, remove, or adjust equipment according to your feed type, raw materials, production capacity, and specific requirements. The following sections explain the processing stages and the function of each type of equipment.
Luodate Machinery's cleaning equipment removes impurities such as stones, dust, and other unwanted materials from incoming raw materials before further processing. This helps protect downstream equipment, improve processing reliability, and support consistent feed production.
Luodate Machinery's grinding equipment is designed to reduce raw materials to a suitable particle size for feed processing. Its grinding technology supports consistent material preparation, helping improve the uniformity of ingredients before mixing and pelletizing.
Luodate Machinery's batching system measures and combines different raw materials according to the specified feed formula. Available configurations can be tailored to production requirements, helping maintain consistent ingredient proportions and reliable feed quality.
Designed for efficient blending of multiple feed ingredients, Luodate Machinery's double-shaft paddle mixer combines rapid mixing with a specialized paddle arrangement to achieve uniform ingredient distribution. The design supports consistent feed formulations and efficient batch processing.
Luodate Machinery's feed pelletizing solutions can incorporate multi-stage conditioning technology to prepare feed materials before pellet formation. This process supports starch gelatinization and pellet durability, helping improve pellet quality and maintain efficient production.
After pelletizing, cooling equipment helps reduce pellet temperature. This stage prepare the finished pellets for subsequent packaging, storage, and transportation more quickly.
Luodate Machinery screening equipment separates finished pellets by size, helping remove fine particles and classify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packaging.
Luodate Machinery's can configure automatic or manual packaging systems according to production requirements. The packaging section can be integrated into the overall production line to support finished feed handling and distribution.assify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packaging.
Poultry Feed
Cattle Feed Pellets
Chicken Feed Pellets
Pig Feed Pellets
Sheep & Goat Feed Pellets
Duck Feed Pellets
Livestock Feed Pellets
Aquafeed Pellets
Customizable output types and sizes (pellets, crumbles, or mash) tailored to your animal breeding needs.
Equipment selection and process design can be tailored to your feed formula, raw materials, target output, and finished pellet requirements.
Automatic or manual batching and packaging options allow you to select a configuration that fits your production workflow and operating preferences.
The production line connects the main stages of feed preparation, pelletizing, cooling, screening, and packaging into a coordinated process.
Luodate Machinery provides installation guidance and ongoing technical support to help customers with equipment setup, daily operation, and troubleshooting.
To prepare a suitable proposal, it is helpful to provide your target capacity, feed formula or main ingredients, required pellet sizes, available workshop dimensions, and preferred batching and packaging methods. These details help determine the process flow and equipment configuration.
It may be configured to produce feed for different growth stages, provided the equipment and process are suitable for the relevant formulas and pellet specifications. Die selection, grinding requirements, and other settings may need to be adjusted when changing products.
Yes. We can evaluate your production targets, raw materials, feed formulas, and workshop conditions to recommend a suitable production line layout and equipment configuration, we have professional engineers can help you design. Installation guidance and technical support can also be discussed according to your project needs.
