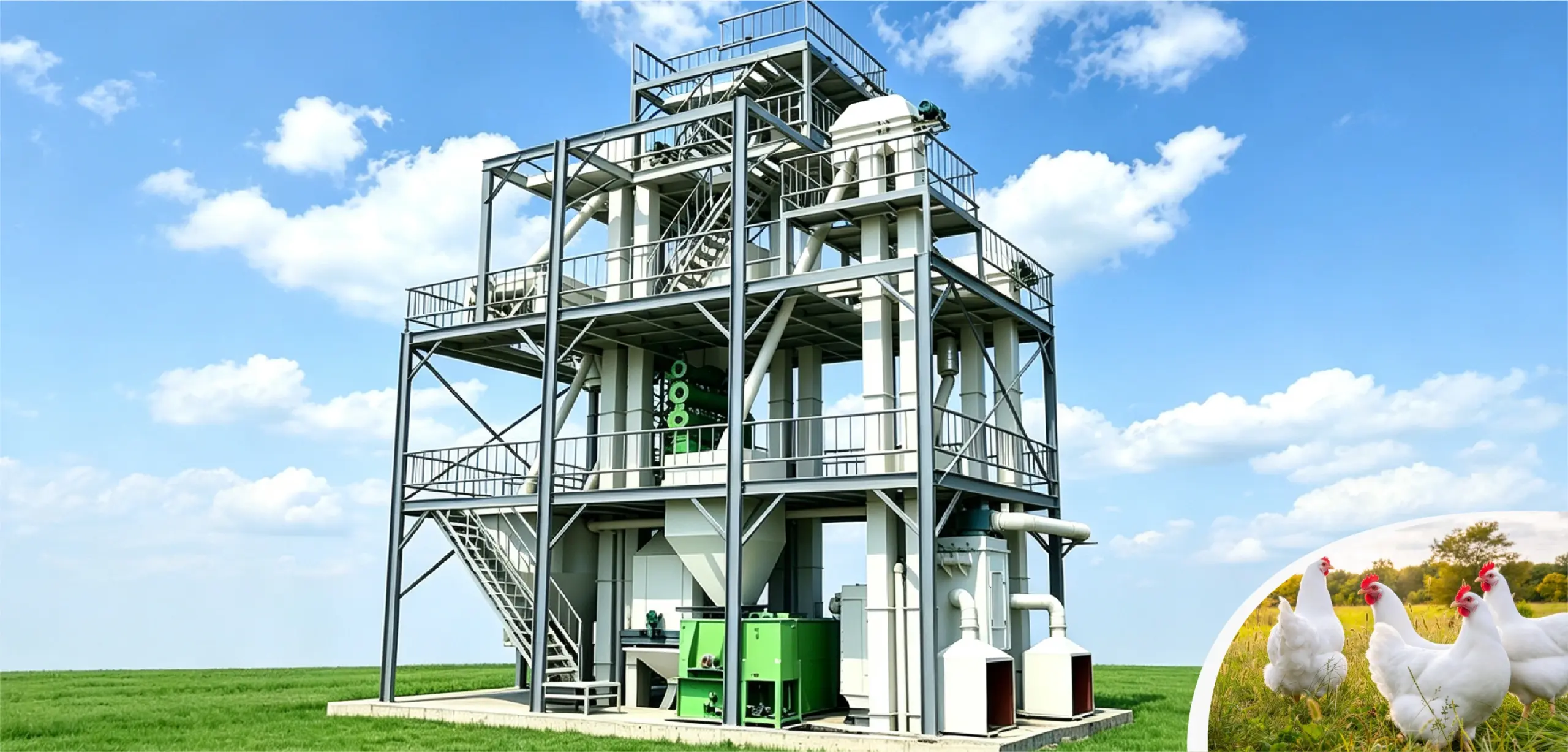

LUODATE's 5–6 TPH poultry feed production line is designed to produce high-quality poultry feed pellets with a capacity of 5–6 tons per hour. The production process can be configured according to your raw materials, feed formula, and production requirements. With flexible batching and packaging options, the line can be tailored to different operating needs.
The production line is designed to produce pellet feed with pellet sizes ranging from 1.0 to 12.0 mm. Depending on your requirements, the batching and packaging systems can be configured for automatic or manual operation.
From equipment selection to production line configuration, Luodate Machinery helps customers find a suitable feed production solution based on their production capacity, operating preferences, and project needs.
| Parameter | Specification |
|---|---|
| Capacity (t/h) | 5-6 TPH |
| Pellet Mill | SZLH 350 |
| Plant Layout | Flexible (Horizontal or Vertical) |
| Pellet Size (mm) | 1.0–12.0 mm |
| Final Product | Pellet Feed and Powder Feed |
| Batching System | Automatic / Manual |
| Packaging System | Automatic / Manual |
Different output animal feed equipment can be customized according to different feed types and output capacity requirement from clients.
Corn
Wheat
Barley
Rice Bran
Sunflower Meal
Wheat Bran
Soybean Meal
Canola Meal
Raw material selection and ingredient ratios can be customized according to locally available crops, regional farming practices, and your specific feed formulation requirements. The materials shown are examples only, and other locally available ingredients can also be considered for your production line.
A typical animal feed pellet production line may include raw material cleaning, grinding, mixing, pelletizing, cooling, crumbling, screening, and packaging. The final process flow depends on the selected equipment configuration and production requirements.
Luodate Machinery can add, remove, or adjust equipment according to your feed type, raw materials, production capacity, and specific requirements. The following sections explain the processing stages and the function of each type of equipment.
Luodate Machinery's cleaning equipment removes impurities such as stones, dust, and other unwanted materials from incoming raw materials before further processing. This helps protect downstream equipment, improve processing reliability, and support consistent feed production.
Luodate Machinery's crushing equipment is designed to reduce raw materials to a suitable particle size for feed processing. Its grinding technology supports consistent material preparation, helping improve the uniformity of ingredients before mixing and pelletizing.

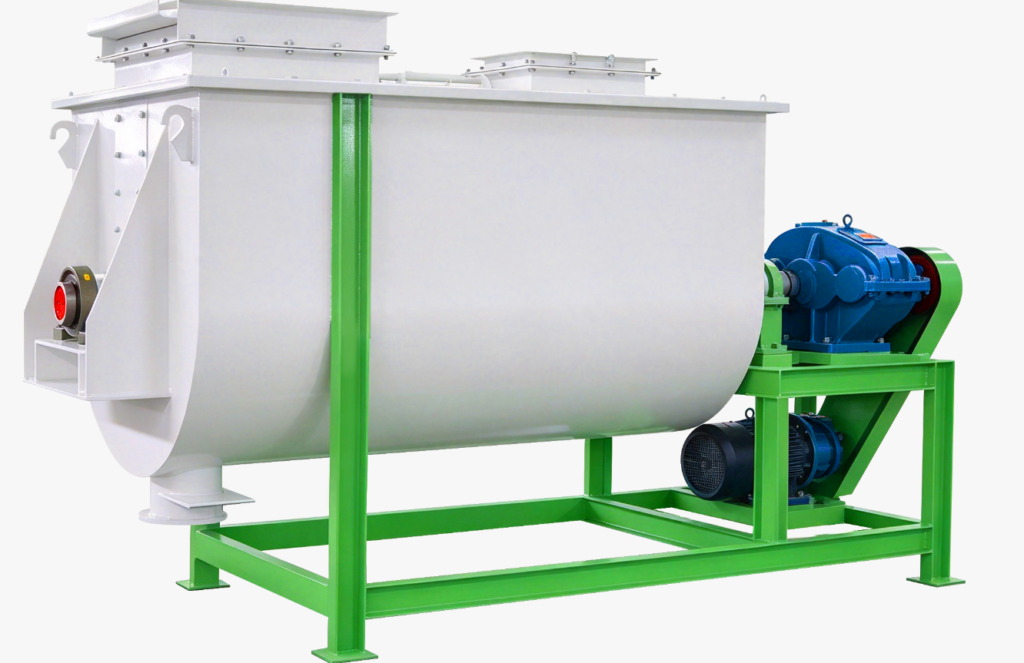

Designed for efficient blending of multiple feed ingredients, Luodate Machinery's twin-shaft paddle mixer combines rapid mixing with a specialized paddle arrangement to achieve uniform ingredient distribution. The design supports consistent feed formulations and efficient batch processing.

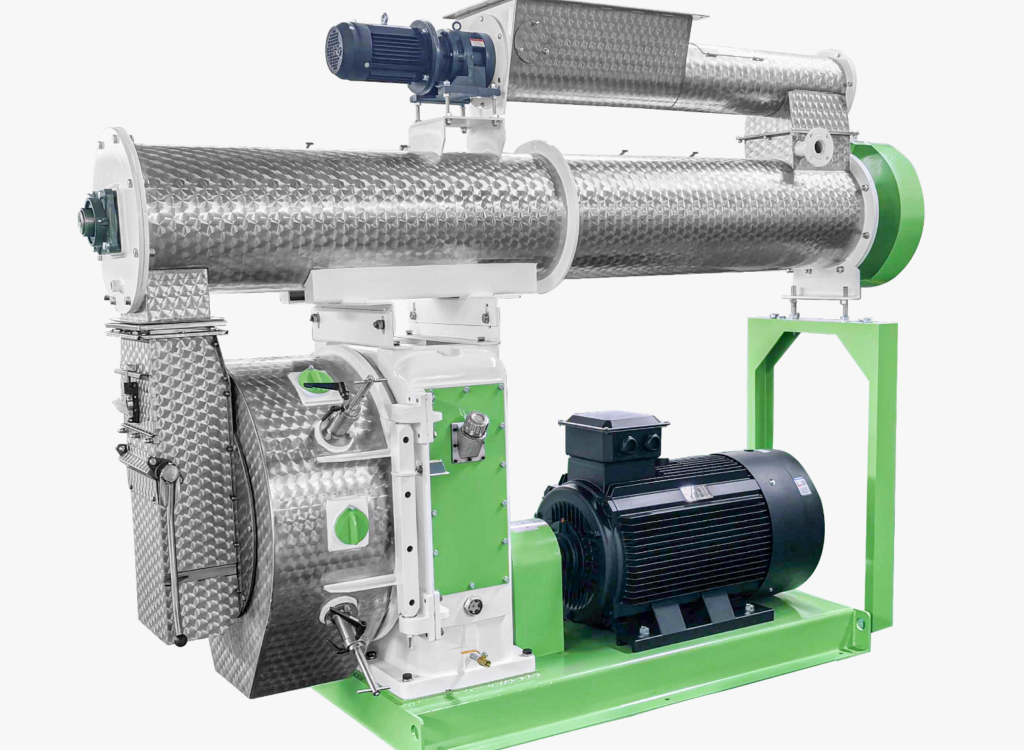

Luodate Machinery's feed pelletizing solutions can incorporate multi-stage conditioning technology to prepare feed materials before pellet formation. This process supports starch gelatinization and pellet durability, helping improve pellet quality and maintain efficient production.
After pelletizing, cooling equipment helps reduce pellet temperature. This stage prepare the finished pellets for subsequent packaging, storage, and transportation more quickly. Luodate Machinery’s counterflow cooler extracts hot air and moisture by passing cool ambient air in the opposite direction of the warm pellets. This uniform counter-current process prevents rapid temperature drops that cause cracking, effectively lowering pellet heat and moisture to ideal levels for bagging and storage.

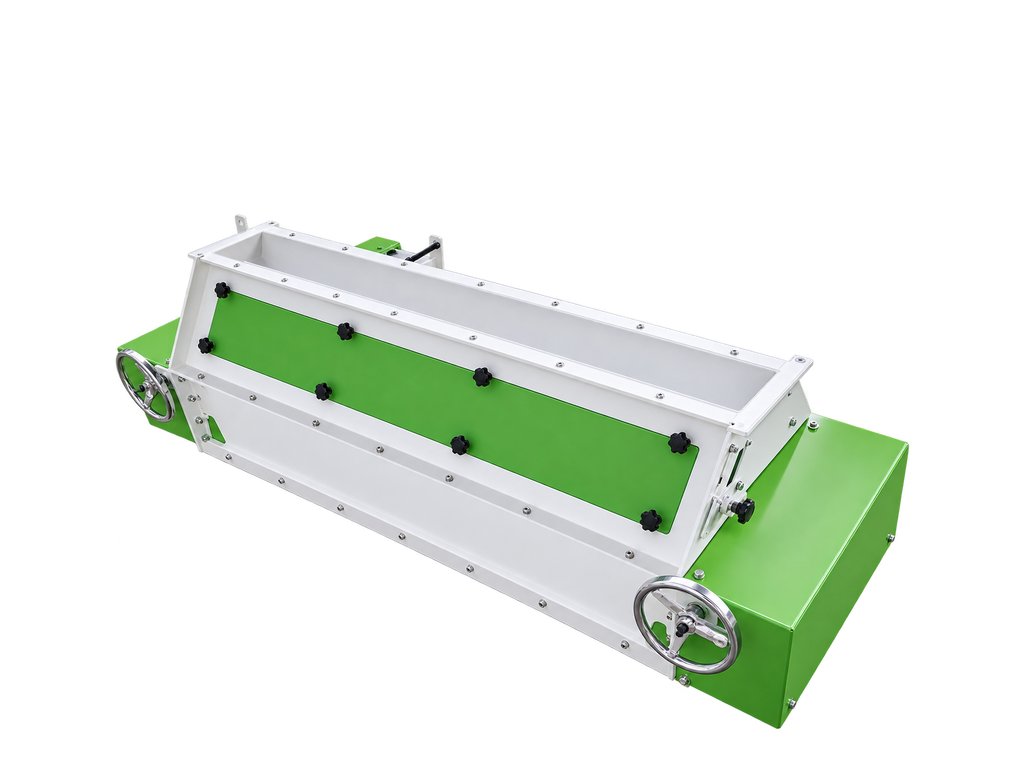

Luodate Machinery's crumbling equipment reduces raw materials to a suitable particle size for feed processing. This essential step is specially designed for farms raising chicks, ensuring the feed size is easy for baby chicks to ingest and digest. By adjusting the roller gap, you can seamlessly switch between standard pellets and micro-crumbles based on your production needs.
Luodate Machinery screening equipment separates finished pellets by size, helping remove fine particles and classify pellets according to the required specifications. This process supports more consistent finished feed quality and prepares the pellets for subsequent packaging.
Flexible Finished Feed Handling
Luodate Machinery’s patented automatic packaging line streamlines your feed production by replacing manual labor with high-efficiency automation. Featuring precise computer-controlled weighing and automatic stitching, it ensures rapid packaging speeds, zero material wastage, and lower labor costs, delivering maximum operational efficiency and reliable product qualit
Poultry Feed
Cattle Feed Pellets
Chicken Feed Pellets
Pig Feed Pellets
Sheep & Goat Feed Pellets
Duck Feed Pellets
Livestock Feed Pellets
Aquafeed Pellets
Customizable output types and sizes (pellets, crumbles, or mash) tailored to your animal breeding needs.
The production line can be configured according to your poultry feed formula, raw materials, required output, and operating conditions.
Automatic or manual batching and packaging options allow you to select a configuration that fits your production workflow and operating preferences.
The grinding, mixing, and pelletizing stages work together to prepare ingredients and produce poultry feed pellets according to your specified requirements.
Luodate Machinery provides installation guidance and ongoing technical support to help customers with equipment setup, daily operation, and troubleshooting.
A production line may be configured to handle different poultry feed formulas, but the suitable configuration depends on the ingredients, processing requirements, and target pellet specifications. Please provide the feed types you plan to produce so that Luodate Machinery can assess whether the proposed equipment can accommodate them.
Prepare information about your main raw materials, target feed products, expected daily production, available workshop space, and preferred level of automation. If you have an existing feed formula or a preliminary workshop layout, sharing it with Luodate Machinery can help our team evaluate your requirements more accurately.
Potential modifications depend on the original equipment configuration, available space, and the capacity of individual machines. If you expect to introduce new feed formulas or increase output later, it is advisable to discuss these plans with us during the initial design stage so that future upgrade options can be evaluated.
