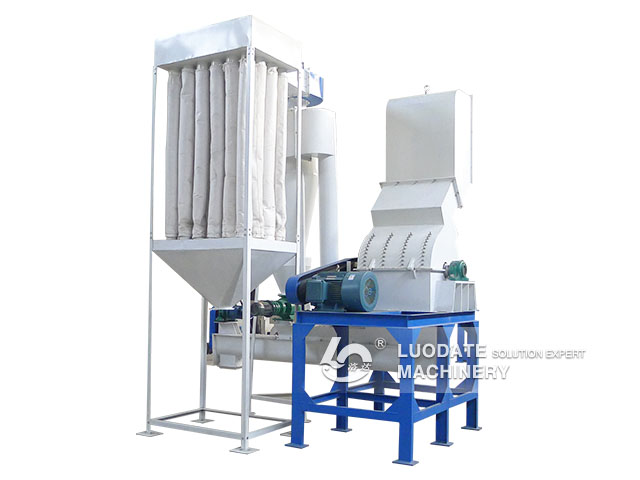

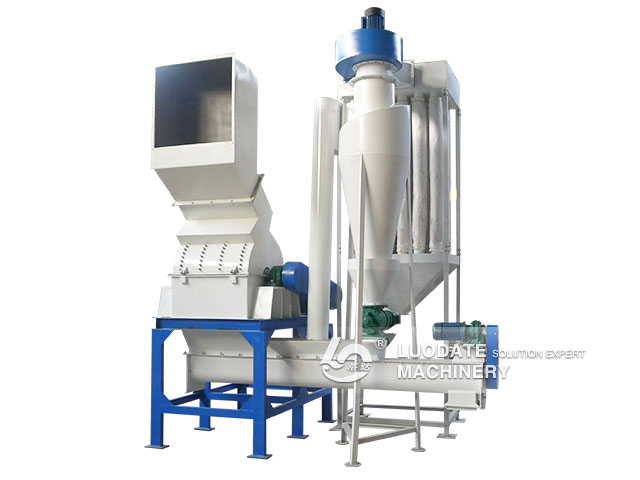

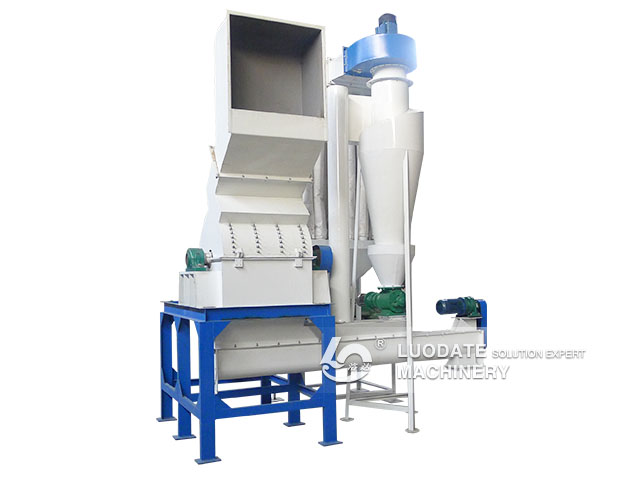

Wood Grinding Machine

  • Type: LDT series Wood Grinding Machine
  • Power(kw): 37 – 110
  • Capacity(t/h): 5 – 20
  • Appication: Use for grinding the wood, bamboo, wood chips, block, etc.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

1.Motor and grinding rotor mounted on a common chassis, through the coupling from the motor direct drive.
2.Rotor passed the dynamic balance experiment, can work on both forward and reverse sides, running smoothly, the feeding inlet on the top of the grinder,can match with various forms of Feeding mechanism, and the blades are arranged symmetrically.
3.The material to be crushed is fed from the feed port through the feeding mechanism, guided by the feed guide plate,from the left or right into the crushing chamber, in the high-speed rotation of the hammer cutting hit function, the material gradually grinded and discharged through the conveyor so that ensure the crushing quality and meet the environmental standards.

Technical Parameter:

Mobel Rotor Diameter(mm) Hammer(picec) Crushing chamber width (mm) Power(kw) Capacity(t/h) Size(mm)
LDT66*60 660 96 600 37/45 3-4 2600*2100*3235
LDT66*80 660 128 800 55/75 5-7 2600*2300*3235
LDT66*100 660 160 1000 75/90 7-9 2600*2500*3235
LDT66*125 660 200 1250 90/110 9-11 2600*2750*3235
LDT66*150 660 240 1500 110/132 12-15 2600*3000*3235
