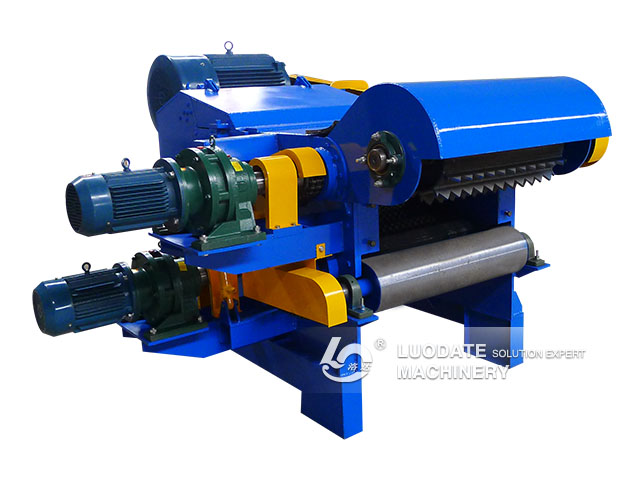

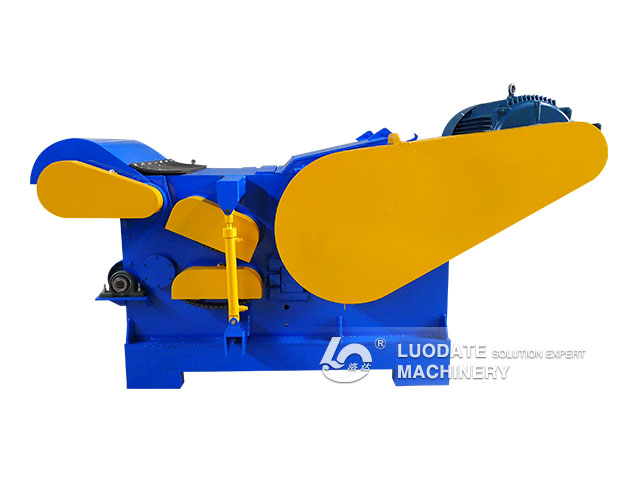

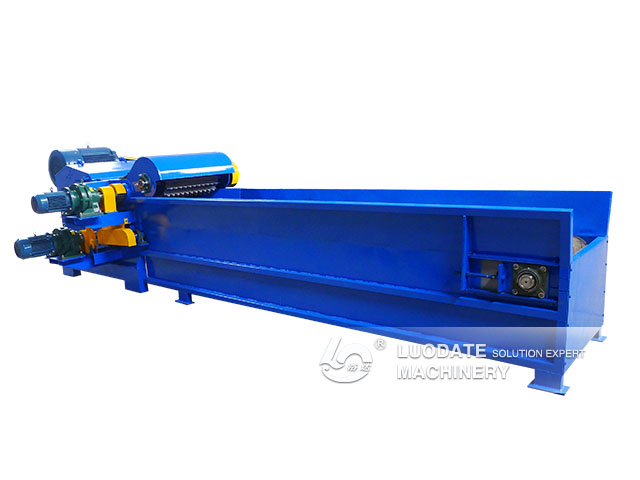

Wood Chipper Machine

  • Type: LDT series Wood Chipping Machine
  • Power(kw): 45 – 110
  • Capacity(t/h): 3 – 18
  • Appication: Use for orchard, garden, paper mill, particleboard factory, fibreboard factory,wood, etc.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

1. This series of wood chipper consists of frame, blade roller, upper and lower feed roller, conveyor belt, hydraulic system and other parts. Frame and shell are made of high strength steel plate welding, and there are fly blades installing on blade roller.
2. Upper feeding roller assembly can float up and down within the prescribed scope under effect of hydraulic, in order to achieve function of cutting raw materials with different thickness. Materials after cutting will discharge through screen hole, those which don’t meet the requirement will be cut again in machine until reaching standard.
3. The chipper machine can chop different raw materials to required size, such as: log, wood branch, veneer, bamboo, etc, widely used in the biomass pellet plant.

Technical Parameter:

Model Inlet Size(mm) Main Power(kw) Feeder Power(kw) Oil Pump Power(kw) Conveyor Power(kw) Woodchip Size(mm) Capacity(t/h) Dimension(mm)
LDT215 160*400 45 3*2 1.5 3 30-50 3–5 2500*2000*1000
LDT216 180*690 55 4*2 1.5 3 30-50 7–10 3300*2300*1350
LDT218 290*690 110 5.5*2 1.5 4 30-50 12–18 3300*2500*1500
