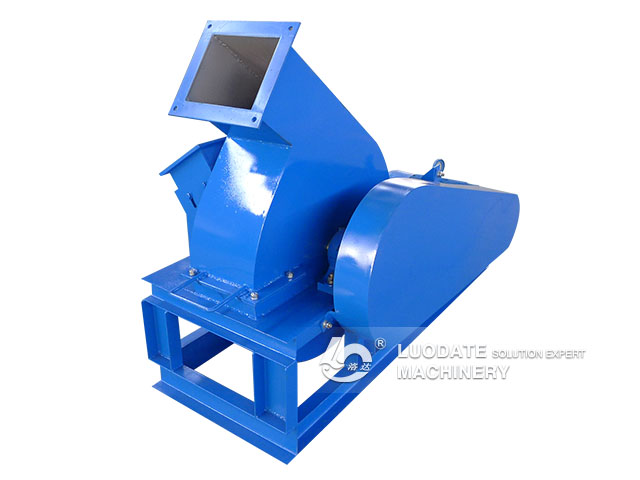

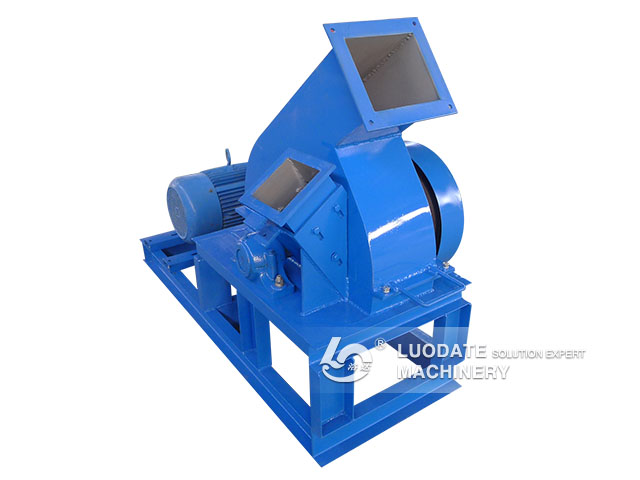

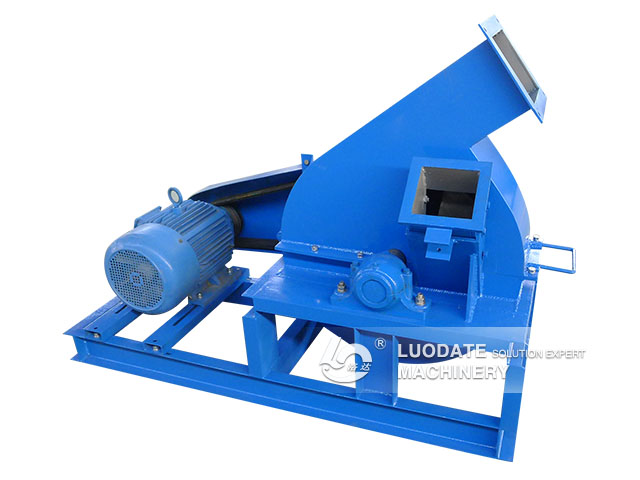

Disc chipper machine

  • Type: LDT series Wood Disc Chipping Machine
  • Power(kw): 15 – 90
  • Capacity(t/h): 1 – 20
  • Appication: Use for orchard, garden, paper mill, particleboard factory, fibreboard factory,wood, etc.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

  • Disc chipper is mainly used for cutting logs, get the better quality of wood chips, mostly used in pulp and paper mill.
  • Disc chipper blade includes ordinary chipper (4-6 knives) and multi-chip (6-8 knives).
  • Chipper feeding method has oblique mouth feeding and flat mouth feeding (or horizontal feeding).
  • Long shavings usually adopt flat mouth feeding. Short logs and slab shavings adopt tilted feeding and flat feeding.

Technical Parameter:

Model Power(kw) Mainshaft speed(r/min) Blade quantity(pieces) Cutterhead diameter(mm) Weight(kg) Capacity(t/h)
500 15 600 4 500 300 1-2
600 22 600 4 600 400 2-3
800 30 600 4 800 650 4-5
950 37 600 4 950 800 6-8
1100 55 600 4 1100 1650 10-12
1210 75 600 4 1210 2500 12-15
1410 90 600 4 1410 3200 15-20
