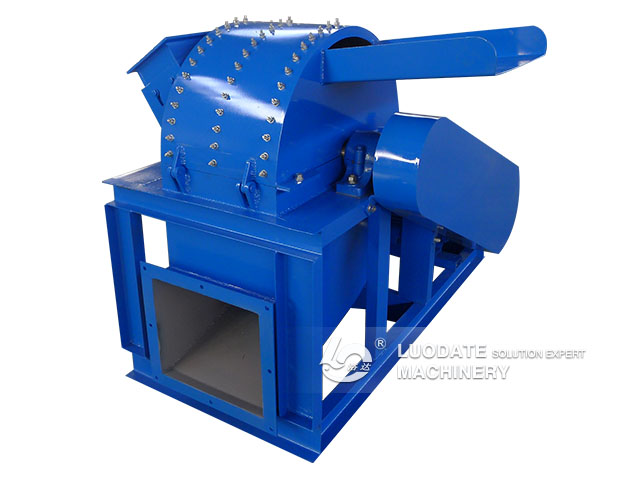

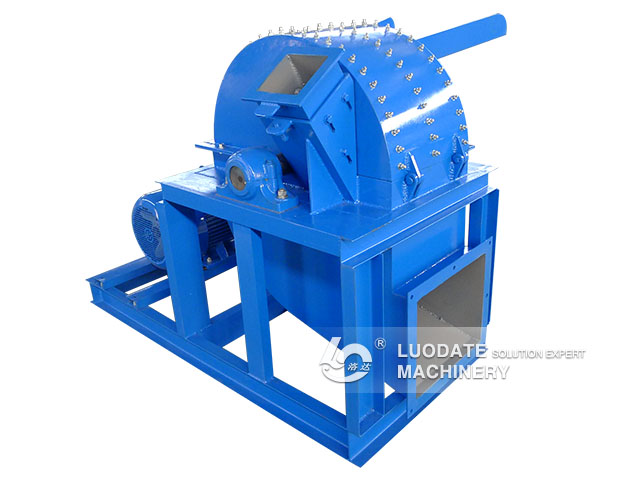

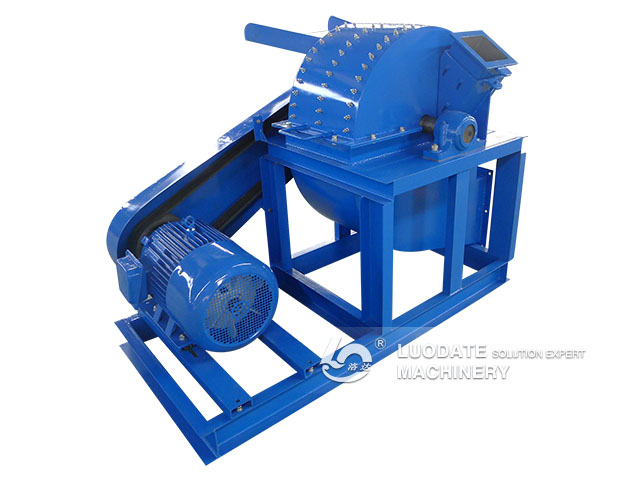

Wood Chip Grinder

  • Type: LDT series Chipping & Grinding Machine
  • Power(kw): 15-55
  • Capacity(t/h): 1-5
  • Appication: Wood Chip Grinder is hammer type wood grinder, which can process pine, wood, poplar, bamboo, palm fruit etc.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

1.The wood chip grinder can be applicable for the sawdust processing in the culture medium of edible fungi, which mainly consists of the chip cutting device, the grinding device and the fan. The wood chips are small in size after being cut by the chip cutting device, which can be sent to the grinding device without drying. The finished products are discharged by the fan. The whole equipment is driven only by an electric motor with simple structure, compact layout, low price, stable work, low energy consumption, high output, good quality of wood chips and low processing cost. It can also be used in the cutting of such fibrous stalk materials as bamboo, straw, corn stalk, sorghum stalk etc. This machine can also be used in the raw material production of high density board of particle board and sawdust board.
2.The wood chip grinder can process pine, miscellaneous wood, aspen wood, cedarwood, original bamboo. With compact structure, covering a small area, good quality chips and low power consumption, this machine can be suitable for mobile operation, which is widely used in the preparation section of particle board and fiber board in small and medium manufacturing enterprises, and also for the commodity wood chip production of individual householders.

Technical Parameter:

Model Cutterhead diameter(mm) Throwing Knives quantity(pieces) Grinder blade Cutter length(mm) Inlet diameter(mm) Mainshaft speed(r/min) Power(kw) Capacity(kg/h)
LDT500 500 4 32 140 120*120 2000 15 200-300
LDT600 600 4 32 180 150*150 2000 18.5 300-1000
LDT700 700 4 40 200 170*170 2000 22-30 1000-1500
LDT800 800 4 40 230 200*200 2000 37-45 1000-2000
