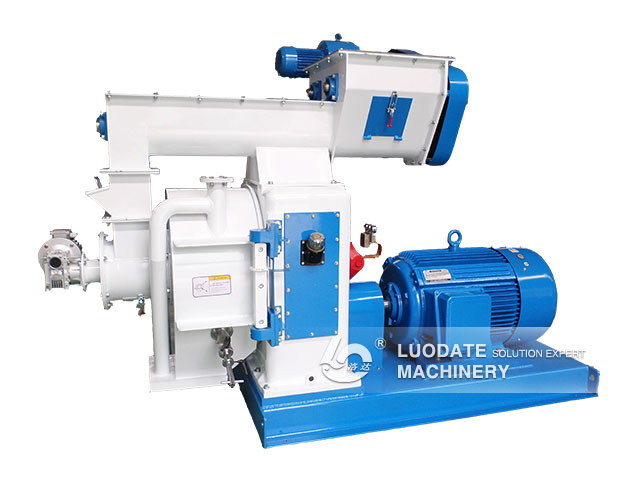

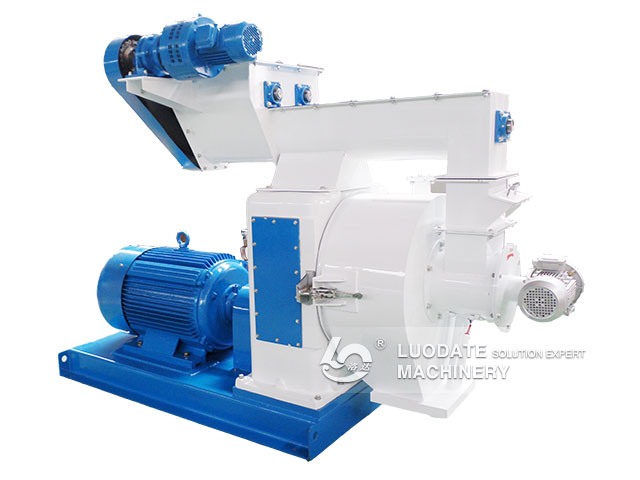

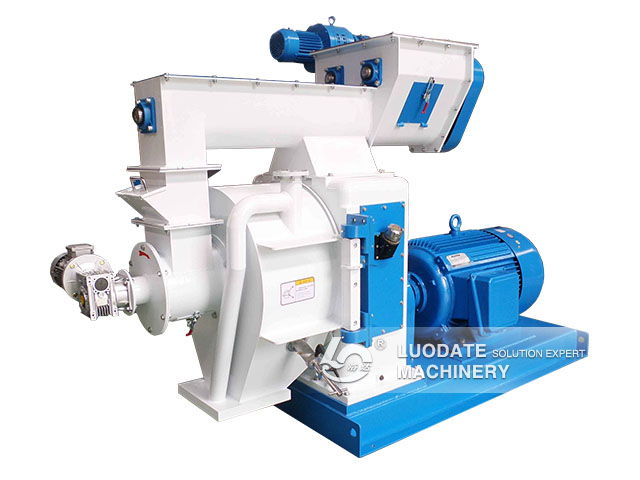

SZLH series Wood Pellet Mill

  • Type: SZLH series Wood Pellet Machine
  • Capacity(t/h): 0.1-3
  • Pellet size(mm): 6-12
  • Application: can be used in production of various kinds of fuel pellet.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

  • Scope of application: this machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower, olive, bagasse, and other raw materials.
  • Main drive adopts high accuracy gearbox for high efficiency.
  • Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device.
  • High output, low noise, convenient operation and maintence.
  • Main parts of the bearing and standard parts are imported.
  • Equipped with 6mm – 12mm of the ring die, users can choose according to the different needs.

Technical Parameter:

Model Main power (kw) Feeder power (kw) Forced feeding device of power (kw) Inner diameter of ring die (mm) Particle size (mm) Capacity (t/h) Dimension (mm)
SZLH 250 22 0.75 0.55 250 6-12 0.1-0.2 1420×1200×1400
SZLH 320 37/45 0.75 0.55 320 6-12 0.3-0.5 2200×1000×1500
SZLH 350 55 1.1 0.55 350 6-12 0.5-0.8 2500×1100×1600
SZLH 400 75/90 1.5 0.75 400 6-12 0.8-1.5 2700×1150×1700
SZLH 420 90/110 1.5 0.75 420 6-12 1.5-2 2800×1150×1730
SZLH 508 132/160 1.5 0.75 508 6-12 2-3 3000×1260×1860
