Product Introduction

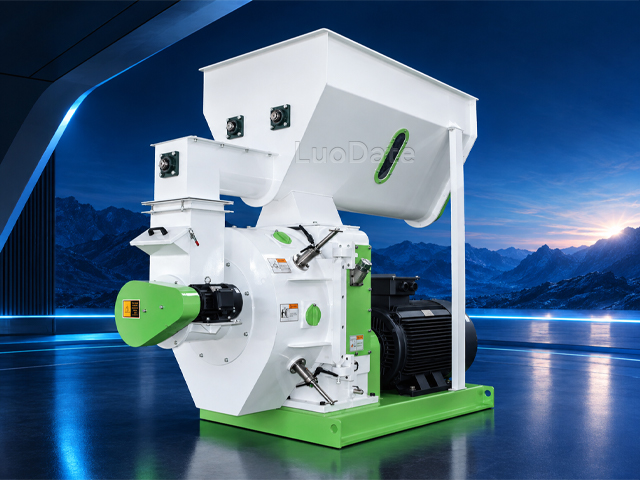

An Alfalfa Pellet Machine is designed to compress prepared alfalfa material into compact pellets. It helps transform loose forage into a more manageable form for storage, transportation, and subsequent use.
Before pelletizing, alfalfa may require cleaning, chopping, grinding, or moisture adjustment, depending on its original condition. The prepared material is then fed into the machine, where mechanical pressure forms it into pellets. Pellet dimensions and production performance depend on the machine configuration and material characteristics.
Luodate Machinery provides alfalfa pelletizing equipment for different processing requirements. Whether you are handling dried alfalfa hay or prepared alfalfa meal, the appropriate machine should be selected according to raw material condition, target output, required pellet diameter, and installation conditions.
Product Advantages
The elevated hopper provides a dedicated inlet for prepared alfalfa material. Its wide upper opening supports convenient material loading and helps guide the material toward the pelletizing chamber.
The forced feeder actively conveys prepared alfalfa material toward the pelletizing chamber. This helps maintain a more consistent material supply, particularly when processing lightweight, fibrous materials that may not flow smoothly by gravity alone.
The ring die and rollers form the core pelletizing assembly. They compress the conditioned material through the die holes to produce cylindrical pellets. Die specifications should be matched to the required pellet diameter and material characteristics.
The cutting mechanism trims the extruded material as it leaves the die. Cutter adjustment allows operators to control pellet length within the limits of the machine configuration, helping meet different finished-product specifications.
Access to the pelletizing chamber supports routine inspection of the ring die, rollers, and other working parts. Following the recommended maintenance procedures helps operators monitor component wear and plan servicing.
Different ring die specifications can be selected to match target pellet diameters and processing requirements. The appropriate die should be confirmed with the machine model and material conditions before ordering.
Technical Parameter
| Model | Power (kw) | Power of feeder (kw) | Power of conditioner(kw) | Inner diameter of ring die (mm) | Pellet size (mm) | Capacity(t/h) |
|---|---|---|---|---|---|---|
| SZLH 320 | 45 | 1.1 | 2.2×3 | 320 | 1-6 | 2-3 |
| SZLH 350 | 55 | 1.5 | 3×3 | 350 | 1-6 | 2-7 |
| SZLH 400 | 75/90 | 1.5 | 5.5×3 | 400 | 1-6 | 4-11 |
| SZLH 420 | 90/110 | 1.5 | 5.5×3 | 420 | 1-6 | 5-12 |
| SZLH 508 | 132/160 | 2.2 | 7.5×3 | 508 | 1-6 | 7-15 |
| SZLH 678 | 185/200 | 2.2 | 11×3 | 678 | 1-6 | 9-25 |
| SZLH 768 | 280/315 | 2.2 | 15×3 | 768 | 1-6 | 15-28 |
Production Process
The alfalfa pellet production line covers material preparation, crushing when required, pelletizing, cooling, screening, and finished pellet handling. The crushing stage can be adjusted according to the incoming material and required fineness.
At the heart of the line, the Alfalfa Pellet Machine compresses prepared material through the ring die to form pellets. After pelletizing, the hot pellets are cooled and screened to help remove fines before collection or packaging. The complete line configuration depends on the raw material condition, target output, and production requirements.
SZLH350 3-5 T/H Feed Pellet Production Line in Myanmar
10TPH Mash Feed Production Line in Saudi Arabia
Poultry Feed Mill Project for a 1 Million-Layer Farm in Colombia
20TPH Animal Feed Mill with Fully Automatic Computer-Controlled Batching in Ethiopia
300,000 TPA Automatic Poultry & Livestock Feed Mill in the Philippines
The main factors include your target production capacity, required pellet diameter, incoming material condition, and available utilities. Sharing these details helps determine a suitable machine model and configuration.
Yes, different pellet diameters can generally be achieved by selecting a compatible ring die. The available sizes depend on the machine model and die specifications. Please confirm your target diameter before placing an order.
Material preparation depends on its initial form and the machine configuration. Long fibers or bulky material may require size reduction before entering the pelletizing stage. The appropriate preparation method should be determined after evaluating your material.
Steam conditioning may be used to adjust material conditions before compression. Whether it is required depends on the material properties, target pellet quality, and selected process. The conditioning requirements should be confirmed for your specific application.
Actual output depends on the machine model, material characteristics, moisture content, die specifications, and operating conditions. For a more realistic capacity estimate, provide your target output and material details rather than relying on the rated capacity alone.
Integration depends on the available space, upstream material preparation equipment, downstream pellet handling equipment, and production capacity. Luodate Machinery can evaluate the existing layout and connection requirements to help determine whether the machine can be integrated into your line.
