| Project Details | Specifications |
|---|---|
| Country | Philippines |
| Application | Poultry & Livestock Feed |
| Annual Capacity | 300,000 tons/year |
| Production Capacity | Approx. 60 T/H |
| Batching System | Fully Automatic Computer-Controlled Batching |
| Packaging System | Fully Automatic |
| Project Area | Approx. 6.67 ha (100 mu) |
| Building Area | Approx. 5,000 m² |
| Supplier | Luodate Machinery |
Before placing the order, the Philippine customer spent approximately three months evaluating feed production equipment, production capacity, automation level and the supplier's technical capabilities.
The requirement was a large-scale, fully automated line capable of producing around 300,000 tons of poultry and livestock feed per year, with:
A complete production layout integrating raw material storage, processing, finished feed handling and supporting facilities
After technical discussions and project evaluation, Luodate Machinery designed and supplied a complete automatic poultry and livestock feed production line tailored to the customer's production requirements.
The complete system includes raw material receiving and cleaning, automatic computer-controlled batching, crushing, mixing, pelletizing, cooling, screening, and automatic packaging.
| Section | Equipment | Model | Qty | Key Specification |
|---|---|---|---|---|
| Raw Material Receiving & Cleaning | Raw Material Steel Silo | — | 2 | 1,500 t each |
| Raw Material Receiving & Cleaning | Receiving and Pre-Cleaning System | — | 1 set | With material conveying system |
| Grinding | Hammer Mill | SFSP66×100 | 2 | 15 T/H each, 160 kW each |
| Batching & Mixing | Mixer | SLHSJ4 | 2 | 2,000 kg/batch, 30 kW each |
| Batching & Mixing | Four-way Distributor | — | 3 | — |
| Batching & Mixing | Raw Material Bin | — | 12 | — |
| Batching & Mixing | Automatic Batching Scale | — | 2 | — |
| Pelletizing | Mixing Bin | — | 4 | — |
| Pelletizing | Feed Pellet Mill | SZLH508 | 4 | 15 T/H each, 160 kW each |
| Cooling & Screening | Counterflow Cooler | — | 4 | 2 t each |
| Cooling & Screening | Rotary Screener | — | 4 | — |
| Packaging | Automatic Packaging Machine | — | 4 | Fully automatic |
Raw material receiving & cleaning → Automatic computer-controlled batching → Grinding → Mixing → Pelletizing → Cooling → Screening → Automatic packaging

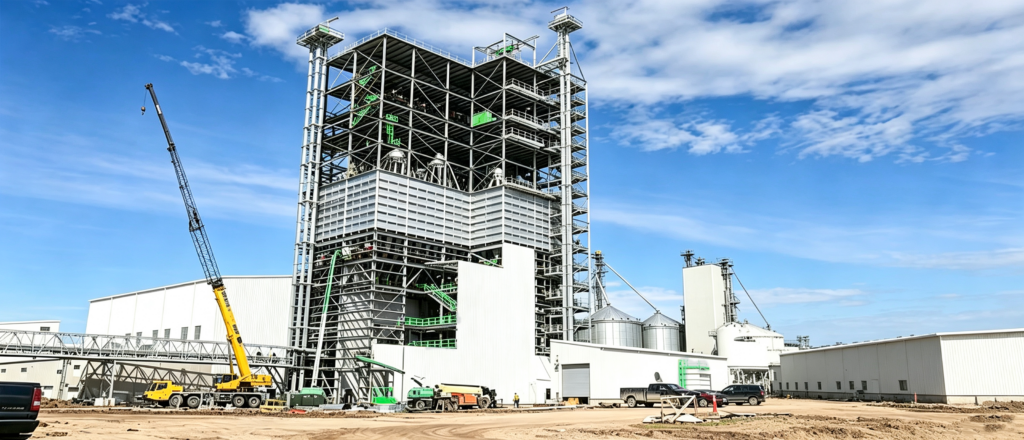

The complete project covers approximately 6.67 hectares, with a total building area of approximately 5,000 m².
The project layout includes:
This integrated project layout provides the customer with a complete feed manufacturing solution, covering raw material receiving, processing, pelletizing, cooling, screening, and finished feed packaging.
By supplying the complete production line, Luodate Machinery provided the customer with a fully integrated solution for large-scale poultry and livestock feed production.
The project serves as a practical example of Luodate Machinery’s experience in designing, manufacturing, and delivering complete feed mill solutions for overseas customers.
For customers planning a large-scale feed mill, this project demonstrates that Luodate Machinery has experience supplying complete, high-capacity poultry and livestock feed production lines, including automatic batching, pelletizing, cooling, screening, and packaging.
