| Project Details | Specifications |
|---|---|
| Project Location | Ethiopia |
| Application | Poultry & Livestock Feed |
| Production Capacity | 20 T/H |
| Production Line | SZLH420 Fully Automatic Dual Pelletizing Line |
| Batching System | Fully automatic computer-controlled batching |
| Project Area | Approx. 33.33 hectares / 333,000 m² |
| Equipment Dimensions | Approx. 22 m × 12 m × 23 m |
| Installation Period | Approx. 90 days |
| Supplier | Luodate Machinery |

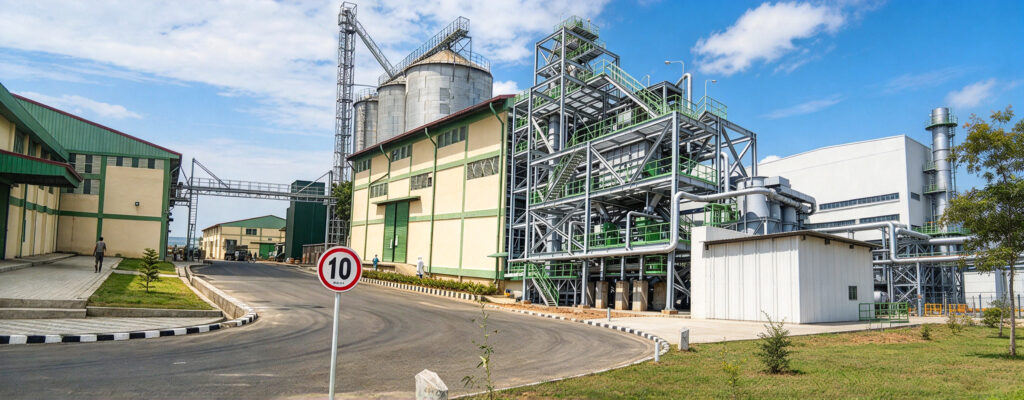

The customer operates a large-scale feed mill in Ethiopia producing poultry and livestock feed for chickens, ducks, cattle and sheep.
After evaluating several equipment suppliers and comparing project proposals, the customer selected us to supply a 20 T/H fully automatic feed pellet production line.
Their key requirements were:
Based on the customer's production requirements, Luodate Machinery supplied an SZLH420 fully automatic dual-line feed pellet production system with a designed capacity of 20 tons/hour.
The complete production line integrates raw material receiving, cleaning, storage, automatic computer-controlled batching, crushing, mixing, pelletizing, cooling, screening, finished feed storage, and automatic packaging.
| Section | Equipment | Model | Qty | Key specification |
|---|---|---|---|---|
| Grinding | Hammer Mill | SFSP66×100 | 2 | 132 kW main motor each |
| Batching & Mixing | Five-way Distributor | — | 2 | — |
| Batching & Mixing | Six-way Distributor | — | 1 | — |
| Batching & Mixing | Raw Material Bin | — | 15 | 10 m³ each |
| Batching & Mixing | Twin-Shaft Paddle Mixer | — | 1 | Large access door |
| Batching & Mixing | Automatic Weighing Scale | — | 2 | — |
| Pelletizing | Bin | — | 4 | 10 m³ each |
| Pelletizing | Feed Pellet Mill | SZLH420 | 2 | 110 kW main motor each |
| Cooling & Crumbling | Counterflow Cooler | — | 2 | — |
| Cooling & Crumbling | Pellet Crumbler | — | 2 | — |
| Screening | Rotary Screener | — | 2 | — |
| Storage & Packaging | Finished Feed Bin | — | 4 | 10 m³ each |
| Storage & Packaging | Automatic Packing Scale | — | 2 | Fully automatic |
The complete process runs as a single integrated flow:
Raw Material Receiving → Pre-cleaning & Iron Removal → Storage → Automatic Computer-Controlled Batching → Crushing → Secondary Iron Removal → Mixing → Conveying → Conditioning → Double-Layer Conditioning → Pelletizing → Cooling → Screening → Finished Product Storage → Automatic Packaging → Warehousing
This integrated flow lets the customer manage production from raw material receiving through to finished feed packaging within one system.
The equipment structure measures approximately 22 m long × 12 m wide × 23 m high, arranged across five levels:
| Level | Clear Height |
|---|---|
| 1st floor | 5.0 m |
| 2nd floor | 5.3 m |
| 3rd floor | 4.0 m |
| 4th floor | 4.0 m |
| 5th floor | 3.7 m |
The multi-level layout lets the line use gravity-based material flow, which reduces conveying equipment and optimises the overall footprint.
For this overseas project, Luodate Machinery provided an installation plan covering equipment installation, electrical work, welding, and on-site coordination.
Before installation, the customer was required to prepare:
| Item | Qty |
|---|---|
| Crane | 1 |
| Three-phase welding machine | 12 |
| Gas cutting set | 3 |
| Set of manual tools | 12 |
| Handheld cutting machine | 6 |
| Set of scaffolding | 6 |
| 3.2 mm welding electrodes | 20 boxes |
Three-phase power was also required to be available before equipment installation began.
| Role | Qty | Notes |
|---|---|---|
| Mechanical installation worker | 15 | Split into 3 groups of 5; each group included one technician able to work from engineering drawings |
| Electrician | 3 | One for external electrical work, one for internal electrical work, one for high/low-voltage work |
| Welder | 3 | — |
The installation team was divided into three groups of five workers, with each group including a technician capable of reading and working from engineering drawings.
The planned equipment installation period was approximately 90 days.
By supplying the complete dual-line production system, Luodate Machinery provided the Ethiopian customer with a 20 TPH automated solution for commercial poultry and livestock feed production.
The project demonstrates Luodate Machinery's experience in supplying:
The project provides an integrated solution for producing poultry and livestock feed, from raw material receiving through to finished-product packaging and storage.
For customers planning a medium- to large-scale feed mill, this project demonstrates our capability to design and supply complete automatic production lines according to specific capacity, feed type, plant layout, and automation requirements.
Whether the project involves poultry feed, livestock feed, or a combination of both, we can provide the corresponding equipment configuration and complete production line solution.
