Ruminant Feed Pellet Machine

Get A Quote

Product Introduction

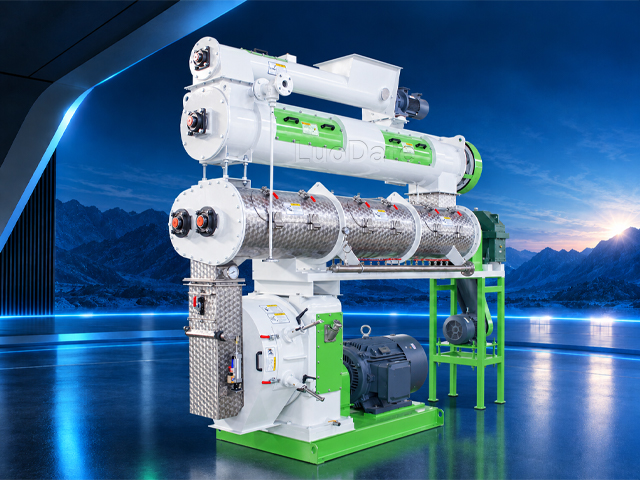

A ruminant feed pellet machine turns roughage-based mixes into pellets for cattle, sheep, goats and camels. Material is pressed through a ring die, and the pellets come out uniform and dense.

Ruminant feed starts from bulky ingredients — grass, alfalfa and grain. They are ground and blended into one mix before pressing, so the ration reaches the die as a single, even batch.

The machine covers the herd rather than a single species. Pellet size runs from 2 to 12 mm, and the ring die is changed between grades, so one machine can serve cattle, sheep, goats and camels.

This machine is the pelletizing unit of a Livestock & Cattle Feed Production Line. Luodate Machinery also builds the grinding, mixing and cooling equipment that goes around it, so a project is planned as one line rather than a set of separate machines.

Product Advantages

  • Built Around Roughage Formulas

    Ruminant feed is based on bulky ingredients — grass, alfalfa and grain. The machine is set up for those mixes, from the grinding and blending stage through to the way the mash is pressed in the die.

  • One Die Range Across the Herd

    Pellet size is set by the ring die, and the range runs from 2 to 12 mm. Changing the die moves the machine between grades, so the same unit covers cattle, sheep, goats and camels.

  • Pellets Built for Digestion

    The machine is set up to produce nutritionally balanced pellets that are easy for the animal to digest. Formula settings and die choice follow the animal being fed.

  • Pellets That Hold Up in Storage and Transit

    Pellets leave the die uniform and dense. That is the property the feed needs to stay in shape as it is conveyed, stored and loaded for transport.

  • Model Chosen to the Target Output

    The SZLH series covers 0.5 to 40 t/h depending on the model. Model size and ring die are matched to the size of the herd and the output a plant needs.

  • One Platform, Several Feed Types

    The same machine also produces poultry and aquatic feed once the ring die and the formula are changed. One unit can cover more than one feed line on the same site.

Technical Parameter

Model Power (kw) Power of feeder  (kw) Power of conditioner(kw) Inner diameter of ring die (mm) Pellet size (mm) Capacity(t/h)
SZLH 320 45 1.1 2.2×2 320 1-6 2-3
SZLH 350 55 1.5 3×2 350 1-6 2-7
SZLH 400 75/90 1.5 5.5×2 400 1-6 4-11
SZLH 420 90/110 1.5 5.5×2 420 1-6 5-12
SZLH 508 132/160 2.2 7.5×2 508 1-6 7-15
SZLH 678 185/200 2.2 11×2 678 1-6 9-25
SZLH 768 280/315 2.2 15×2 768 1-6 15-28

Production Process

Ruminant feed starts as bulk roughage — grass, alfalfa and grain — so grinding and mixing come first, before anything reaches the die. The blended mash is conditioned with steam, then pressed through the ring die into pellets. Pellets leave the die hot, pass through a cooler, and are graded before packing.



Related Products

Recent Customers Projects

FAQ

What kind of pellets does a ruminant feed pellet machine make?

It makes uniform, dense feed pellets for cattle, sheep, goats and camels. The pellets are pressed through a ring die from a roughage-based mix.

Which animals can it produce feed for?

Cattle, sheep, goats and camels are the main targets. The same platform also handles poultry and aquatic feed when the die and the formula are changed.

What raw materials does it use?

Grass, alfalfa, grain and similar roughage-based ingredients. The ratio is set by the feed formula, which follows the animal being fed.

What pellet sizes can it produce?

From 2 to 12 mm. Pellet size is set by the ring die, and the die is changed between grades.

What output range does it cover?

It covers 0.5 to 40 t/h, depending on the model.

Can one machine cover cattle, sheep, goats and camels?

Yes. The ring die and the feed formula are set for the animal being fed, so one machine serves the whole herd.
